Fully automatic labeller TYPE Lilou 3000

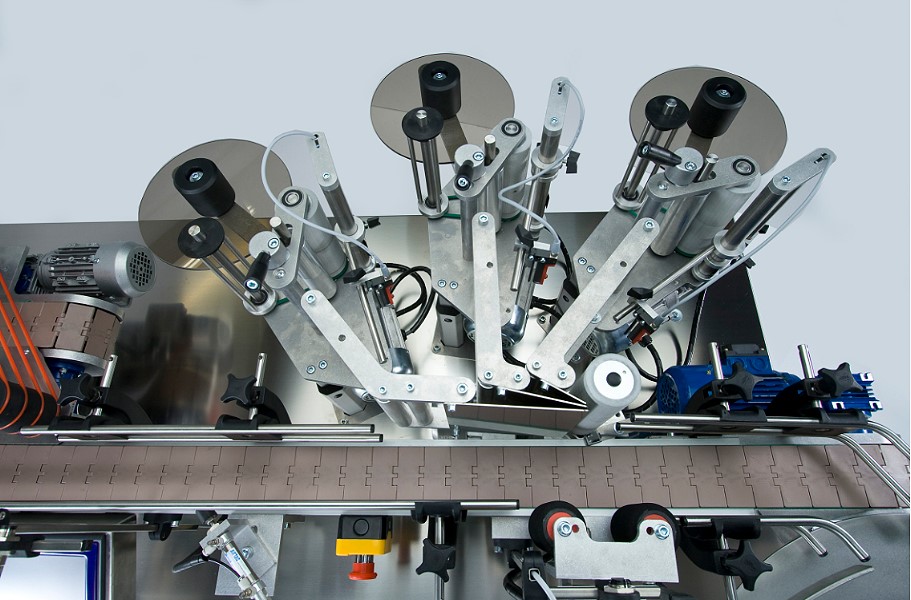

  • Up to 3 label dispensers for labelling belly and back labels as well as a neck label or medal
  • Labelled approx. 3,000 products / h
  • Optional:
    • Third donation head for medal or ribbon or
    • Third dispensing head for award strips or neck label
    • Special sensor for labelling already labelled products
    • Special sensor for the detection of notches, cams,
    • Camera for detecting, aligning and donating labels using a blind triangle
    • Special sensor for the detection of transparent labels
    • Special sensor for cork detection
    • Guide unit for conical bottle

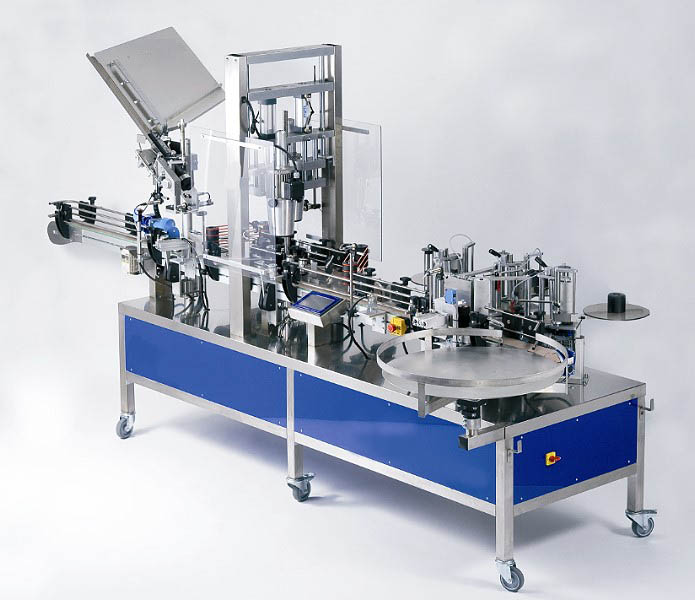

The automatic labelling machine Lilou, consists in the basic equipment with two transport chains and two dispensing heads. Working in parallel with two additional dispensing heads increases the production rate twice! It can thus be processed up to 3,000 products per hour.

Technical specifications

  • Base made of stainless steel V4A
  • Rollers or feet
  • 1 dispenser head for abdominal label with electric height adjustment for max. Label height 160mm
  • 1 dispensing head for back label with electric height adjustment for max. Label height 160mm

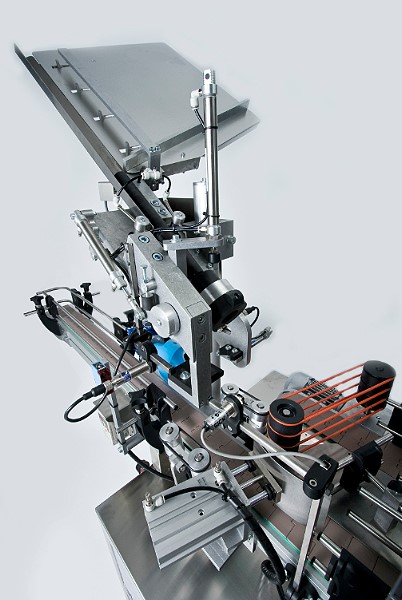

  • Capsule applicator for PVC or metal capsules with electric height adjustment

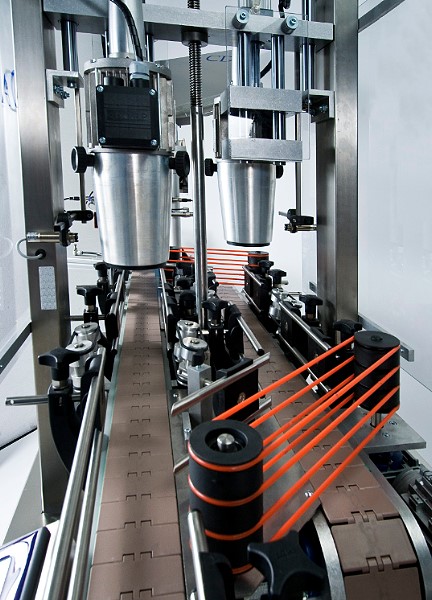

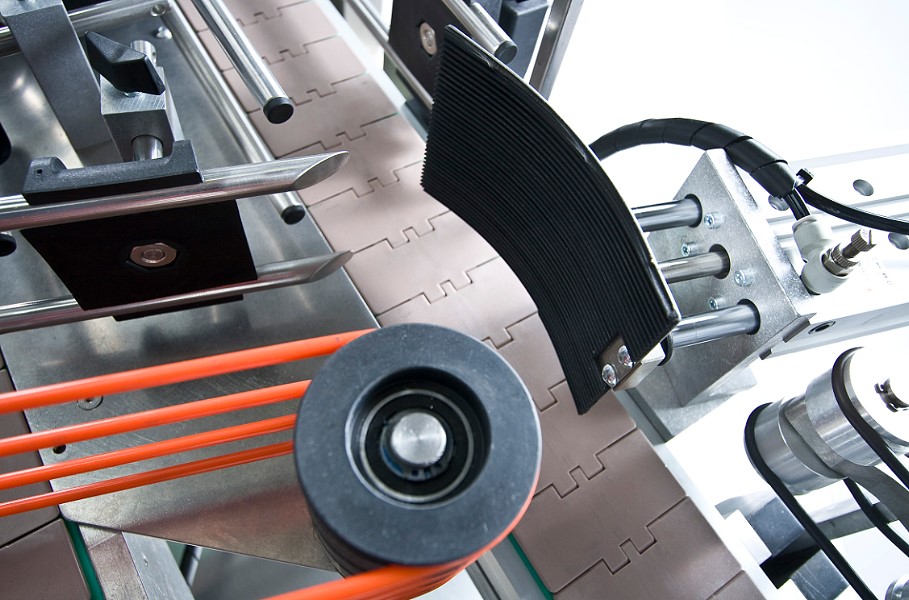

  • Capsule roller or capsule shrinker, consisting of 2 capsule rollers or capsule shrinkers for PVC or metal capsules
  • Product separation by means of multi-format screw with its own drive and speed control
  • System performance approx. 3000 bottles / hour
  • Label size max. 1,500mm x 150mm (L x W)
  • Label size min. 20mm x 25mm (L x W)
  • Core inner diameter 76mm
  • Max. Outer diameter of label rolls 260mm
  • Variable control of the dispensing speed
  • Machine design for cylindrical and non-cylindrical products
  • Control panel via large button screen with memory for 15 label formats
  • Memory for dispensing parameters for up to 15 formats
  • Automatic fault diagnosis and output via key screen
  • Optical sensor for triggering the donation signal
  • Self-diagnosis system via display
  • Material anodized aluminum

options:

  • Third donation head for medal or ribbon or
  • Third dispensing head for award strips or neck label
  • Special sensor for labelling already labeled products
  • Special sensor for the detection of notches, cams,
  • Camera for detecting, aligning and donating labels using a blind triangle
  • Special sensor for the detection of transparent labels
  • Special sensor for cork detection
  • Guide unit for conical bottles
