Fully automatic labelling machine TYPE Rapide 1000 / Rapide Vino

  • Up to 3 label dispensers for labeling belly and back labels as well as a neck label or medal
  • Labelled approx. 1,000 products / h
  • Optional: capsule applicator, capsule shrinker, capsule roller, post-labelling of already labelled bottles, notch detection

Our Rapide is a fully automatic labeller with the min. 1,000 bottles or jars can be labelled in one hour. It can apply up to 3 labels to your bottles in one go.

For a simple but comfortable operation, our Rapide has a button screen included. Another highlight is the electronic height adjustment of the individual label dispensing heads, as well as the large round turntable on which you can collect your finished labelled bottles. Thanks to its castors, this storage system has a storage place everywhere, from which it can be easily and quickly rolled to its place of use whenever needed.

Technical specifications

  • Base made of stainless steel V4A
  • Rollers or feet
  • Powered transport chain with large round turntable made of stainless steel
  • Up to 3 label dispensers for labeling belly and back labels
    as well as a neck label or medal
  • Electric height adjustment of all label dispensing heads
  • Performance min.1000 bottles / hour
  • Automatic product centering for all outside diameters from 50mm to 116mm
  • Compact machine dimensions
  • Label core inside diameter 76mm
  • Max. Outer diameter of label rolls 260mm
  • Control panel via a touch screen with fault diagnosis system
    via display
  • 15 label formats can be saved via key screen

optional:

  • Supplementary capsule applicator
  • Supplementary capsule shrinker or capsule roller
  • Post-labelling of already labelled bottles
  • Notch recognition
Vollautomatisch Flaschen & Gläser etikettieren

Labelling of round honey jars with sealing strips I Fully automatic Rapide 1000 labelling machine

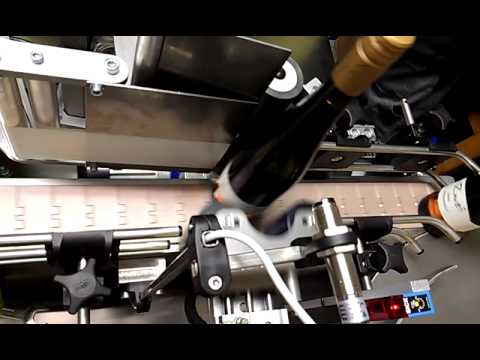

Labelling of bottles I Fully automatic Rapide Vino labelling machine
