Semi-automatic labelling machine TYPE Smart Eco

Available in 5 variants

Labelling of round products
Lying labelling
1 belly or wrap around label
Manual height adjustment of product stabilization

Labelling of round products
Lying labelling
1 belly or wrap around label
Electrically operated product stabilization

Labelling of round products
Standing labelling
1 belly or wrap around label

Labelling of round products
Standing labelling
1 belly or wrap around label
Printing the products with e.g. best before, batch number etc.

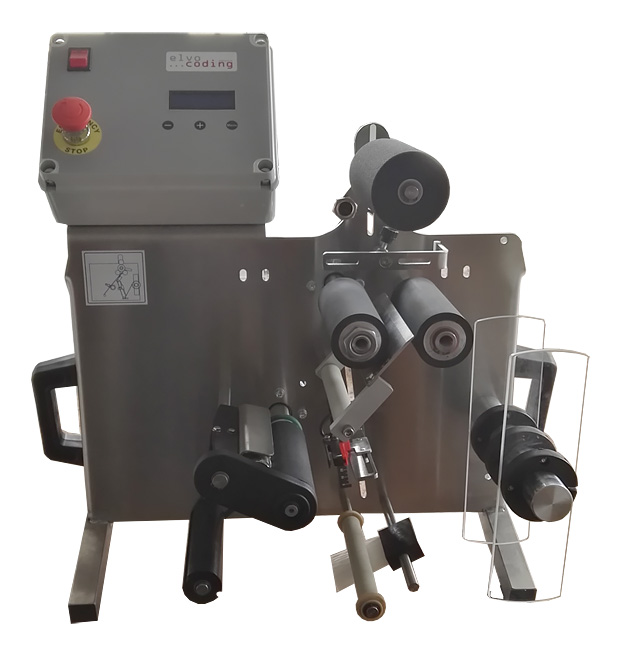

Semi-automatic labelling machine

Smart Eco

  • Table unit
  • Labeling of round products - lying -
  • 1 belly or wrap around label
  • Manual height adjustment of product stabilization (foam roller)

The „SMART ECO“ labeller is a table-top machine capable of applying 1 belly or wrap-around label to round products. With this machine, the products are labeled lying down. Optinonal 2 labels can be applied in one operation. Bottles, jars, plastic bottles, cans, etc. can be labeled. By default, the machine has a manually height-adjustable foam roller for product stabilization and secure label roll-up.

Technical specifications

  • Dimensions: 550mm x 400mm x 500mm
  • Weight: 40kg
  • Power supply: 230V – 50Hz (opt. 110V – 60Hz)
  • Power consumption: 0.2 kW
  • Hourly output 700 b / h
  • Max. Label height: 140mm (opt. 250mm)
  • Max. Label length: 280mm (opt. 340mm)
  • Diameter for round containers: 50-120mm (opt. 20mm-200mm)
  • Size for square containers: 35-100mm

options:

  • 2 labels from a roll
  • Higher labels – up to 250mm
  • Longer labels – up to 340mm
  • Ultrasonic sensor for transparent labels
  • Sensors for notch detection, label recognition, can seam detection
  • Rectangular / flat products
  • Hot stamp for encoding variable data
Smart Eco

Labelling of glass bottles with wrap-around label I Labelling machine Smart Eco

Labelling of 1 label on small PET cans I labeller Smart Eco

Semi-automatic labelling machine

Smart Eco Pro

  • Table unit
  • Labeling of round products - lying -
  • 1 belly or wrap around label
  • Electrically operated product stabilization (contact pressure approx. 8 kg)

The labelling machine „SMART ECO PRO“ is a table-top machine that is able to apply 1 belly or wrap-around label on round products. With this machine, the products are labeled lying down. Optionally, 2 labels can be applied in one go. Bottles, jars, plastic bottles, cans, etc. can be labelled. As standard, the machine has a mechanically moving pressure roller for product stabilization and secure label roll-up.

Technical specifications

  • Dimensions: 700mm x 615mm x 480mm
  • Weight: 35kg
  • Power supply: 230V – 50Hz
  • Power consumption: 0.2 kW
  • Hourly output 700 b / h
  • Max. Label height: 140mm (opt. 250mm)
  • Max. Label length: 280mm (opt. 340mm)
  • Diameter for round containers: 50-120mm (opt. 20mm-200mm)
  • Size for square containers: 35-100mm

options:

  • 2 labels from a roll
  • Higher labels – up to 250mm
  • Longer labels – up to 340mm
  • Ultrasonic sensor for transparent labels
  • Sensors for notch detection, label recognition, can seam detection
  • Rectangular / flat products
  • Hot stamp for encoding variable data
Smart Eco Pro Flaschen und Gläser etikettieren

Labelling of gas cartridges I Labelling machine Smart Eco Pro

Semi-automatic labelling machine

Smart Eco Pro V

  • Table unit
  • Labeling of round products - standing -
  • 1 belly or wrap around label

The labelling machine „SMART ECO PRO V“ is a table machine that is able to apply 1 belly or wrap-around label to round products. In this machine, the products are labelled standing. Optionally, 2 labels can be applied in one go. Bottles, jars, plastic bottles, cans, etc. can be labeled. As standard, the machine has a mechanically moving pressure roller for product stabilization and secure label roll-up.

Technische Spezifikationen

  • Maße: 700mm x 615mm x 480mm
  • Gewicht: 55kg
  • Spannungsversorgung: 230V – 50Hz (opt. 110V – 60Hz)
  • Stromaufnahme: 0,2 kW
  • Stundenleistung 700 b/h
  • Max. Etikettenhöhe: 140mm (opt. 250mm)
  • Max. Etikettenlänge: 280mm (opt. 340mm)
  • Durchmesser für runde Gebinde: 50-120mm (opt. 20mm-200mm)
  • Größe für eckige Gebinde: 35-100mm

Optionen:

  • 2 Etiketten von einer Rolle
  • Höhere Etiketten – bis 250mm
  • Längere Etiketten – bis 340mm
  • Ultraschallsensor für transparente Etiketten
  • Sensoren zur Kerbenerkennung, Etikettenerkennung, Dosennahterkennung
  • Rechteckige/flache Produkte
  • Heißpräger zur Codierung von variable Daten
Halbautomatische Etikettiermaschine Flaschen Gläser Dosen

Labelling honey jars with a label I Labelling Machine Smart Eco Pro V

Semi-automatic labelling machine

Smart Eco Pro V with ink jet or hot stamp

  • Table unit
  • Labeling of round products - standing -
  • 1 belly or wrap around label
  • Printing the products with e.g. Best before, batch number etc.

The „SMART ECO PRO V“ labeller is a semi-automatic table labeller that can be equipped with a coding system, such as a coffee machine. As a hot stamping device, stamping system or inkjet printer (PD12 minijet) can be equipped. This option allows you to label your labels in one step with a batch number, best before date or date of filling (time / day / month / year) and then label them directly on your products. Thus, you save yourself a complete step, for example, the impressions by thermal transfer printer requires.

All consumables such as ink pads, hot stamping foils, ink cartridges you can, directly, refer directly via ELVO CODING .

Technical specifications

  • Dimensions: 700mm x 615mm x 480mm
  • Weight: 55kg
  • Power supply: 230V – 50Hz (opt. 110V – 60Hz)
  • Power consumption: 0.2 kW
  • Hourly output 700 b / h
  • Max. Label height: 140mm (opt. 250mm)
  • Max. Label length: 280mm (opt. 340mm)
  • Diameter for round containers: 50-120mm (opt. 20mm-200mm)
  • Size for square containers: 35-100mm

options:

  • 2 labels from a roll
  • Higher labels – up to 250mm
  • Longer labels – up to 340mm
  • Ultrasonic sensor for transparent labels
  • Sensors for notch detection, label recognition, can seam detection
  • Rectangular / flat products
  • Hot stamp for encoding variable data
Halbautomatische Etikettiermaschine Flaschen Gläser Dosen

Labelling of beer bottles I Labelling machine Smart Eco Pro

Label printing I Labeling machine Smart Eco Pro with coding system PD-12 minijet
