Print labels with our thermal transfer printers and direct thermal printers

Available 7 models

Thermal Transfer Printer

Print resolution 300dpi
Printing width max. 104mm

Print resolution 600dpi
Printing width max. 104mm

Print resolution 300dpi
Printing width max. 168mm

Label Printer & Label Applicator
For cylindrical products with an outer diameter of 20 to 120mm

Direct thermal printer

Print resolution 300dpi
Printing width max. 104mm

Inline Thermal Transfer Printer

Print resolution 300dpi
Printing width max. 105mm

Thermal transfer printer with automatic foil saving

Foil saving automatic from 5mm
Print resolution 305dpi
Printing width max. 104mm

Print labels with our thermal transfer printer and direct thermal printer

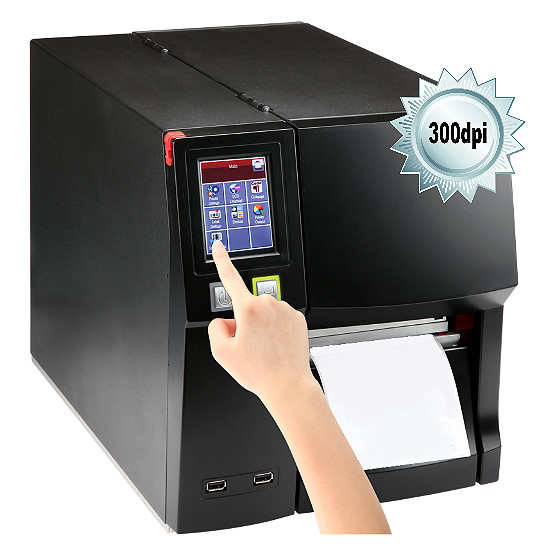

Vitaro 300

  • Print resolution 300dpi
  • Printing width max. 104mm
  • Large format & colored touch screen
  • Patented ribbon device
  • Uncomplicated replacement of the ribbon

An industrial printer, three solutions – perfect for a high print volume. The new VITARO300i is the highlight in the field of 4-inch barcode industrial printers. Particularly helpful: the stand-alone application. At the same time, the label data is handled by a keyboard or a scanner called from the stick and entered.

Due to its ease of use and a very clear user interface with icons, the series is suitable for trade, logistics, car manufacturers and production. The keyboard, scanner and USB sticks can be conveniently connected to the device via interfaces.

Another plus: The new hardware design makes the change even easier. The printer is therefore perfect for demanding applications and a large print volume.

Technical specifications

  • Resolution: 12 dots / mm (300 dpi)
  • Printing method: thermal transfer / direct thermal
  • Print speed: 177 mm / s (up to 7 IPS)
  • Printing width: 104 mm
  • Sensor Type: Adjustable transilluminator
  • Types: Label Gap, Black Mark, control holes and endless material
  • External roller diameter: Max. 203.2 mm
  • Inner core diameter: Min. 38.1 mm – Max. 76.2 mm
  • Interfaces: USB 2.0 Type B, Ethernet, 3 x USB Host
  • Control panel:
  • 3.2 „LCD touch screen with backlight and icons,
  • 1 on / off button with green LED backlight,
  • 1 control buttons: FEED / PAUSE / CANCEL with dual-color LED, backlight,
  • 1 calibration button (back)
  • Dimensions: length 465 mm, height 263 mm, width 305 mm
  • Weight: 13.6 Kg

options:

  • dispenser
  • cutter
  • Internal label rewind
  • WLAN Print Server according to IEEE 802.11b / g / n
  • External label winder
  • Bluetooth module
Farbige Etiketten drucken

Print labels with our thermal transfer printer

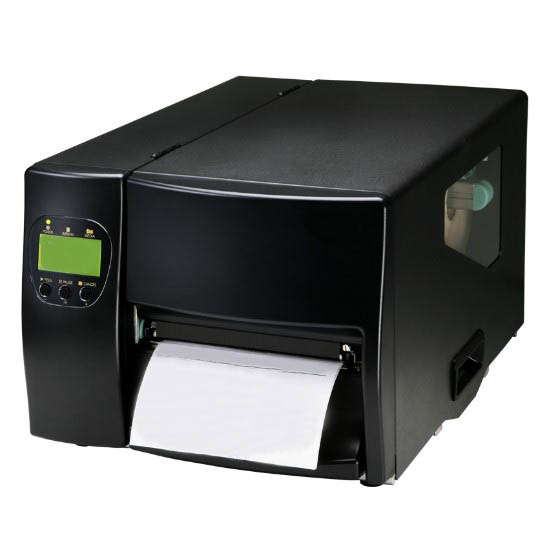

Vitaro 600

  • Print resolution 600dpi
  • Printing width max. 104mm
  • LCD display
  • Easy insertion of label rolls
  • Uncomplicated replacement of the ribbon

The VITARO 600 impresses with its great performance spectrum, fast amortization through low operating costs and low-cost consumables as well as the printing of graphics and fonts with a print resolution of 300 dpi. This industrial printer can be used in all areas! Even the printing of all common barcodes and QR codes are no challenge.
See for yourself!

Technical specifications

  • Resolution: 12 dots / mm (300 dpi)
  • Printing method: thermal transfer / direct thermal
  • Print speed: 102 mm / s (up to 4 IPS)
  • Printing width: 168 mm
  • Sensor Type: Adjustable transilluminator
  • Types: Label Gap, Black Mark, control holes and endless material
  • External roller diameter: Max. 203.2 mm
  • Inner core diameter: Min. 38.1 mm – Max. 76.2 mm
  • Interfaces: USB 2.0 Type B, Ethernet, 3 x USB Host
  • Control panel:
  • 3.2 „backlit LCD screen,
  • 1 power button on the back of the printer,
  • 1 control buttons: FEED / PAUSE / CANCEL,
  • Backlight, calibration function for teaching different contrasts
  • Dimensions: length 516 mm, height 285 mm, width 345 mm
  • Weight: 16.7 kg

options:

  • dispenser
  • cutter
  • Internal label rewind
  • WLAN Print Server according to IEEE 802.11b / g / n
  • External label winder
Thermotransferdrucker Etiketten drucken 600dpi

Print labels with our thermal transfer printer

Vitaro 300 Maxi

  • Print resolution 300dpi
  • Printing width max 168mm
  • Thermal transfer printer, 300dpi, metal housing
  • Print width: 168mm LCD display,
  • designed for continuous operation
  • adjustable label sensor
  • Printing foil length: max. 450m
  • Internal memory 128 BMB Flash and 32 MB SDRAM
  • Matching thermal transfer foil in black and colors available in our individual rolls.

Technical specifications

  • Piezo printhead with 382 nozzles
  • maximum pressure height 53mm

options:

  • incremental encoder
  • mounting bracket
  • external product recognition via sensor
  • separate stand
  • ink cartridges

Print and apply labels

Vitaro 300i touch with label applicator GA 120

  • In combination with our thermal transfer printer "VITARO 300i touch"
  • Cost effective labelling solution for labelling self-adhesive labels.
  • For cylindrical products with an outer diameter of 20 to 120mm.

Our semi-automatic labeller „GA 120“ is a cost-effective labelling solution for labelling self-adhesive labels on a variety of round, cylindrical products with an outside diameter of 20 to 120mm.

In combination with our „VITARO 300i touch“ thermal transfer printer, the labelling system offers a perfect printing and application solution for breweries, farm shops, factories, distilleries, wineries, butchers, cosmetics manufacturers, contract packers and others who sell their products in round, cylindrical packaging.

Thanks to its innovative design, our „GA 120“ is probably the most versatile label applicator of its kind and also extremely user-friendly. Adapting to a specific product is a matter of a few minutes, if not seconds.

Special optional stoppers and stopper strips allow you to quickly and safely label your products. With an optional sensor, your products can even be equipped with two labels in one step.

Options & Accessories

  • Additional, fully adjustable, right-sided stopper for tall and narrow products
  • Product sensor for labeling 2 labels
  • Product manuals for easy insertion and removal of difficult products
Etikettendrucker mit Etiketten-Applikator GA120

Print labels with our inline thermal transfer printer

PEM 4

  • Print resolution 300dpi
  • Printing width max. 105mm

Printing system for integration in a labelling machine for direct printing of the labels during the labelling process.

Technical specifications

  • Near-edge printhead
  • Print speed: Up to 400mm / sec.
  • Print resolution 300dpi
  • Label width: Min. 16mm, max. 136mm
  • Max. Printing width: 105mm
  • Foil saving automatic from 5mm unprinted area
  • Option label retraction
Inline-Thermotransferdrucker Etikettendrucker

Print labels with our thermal transfer printer with automatic foil saver

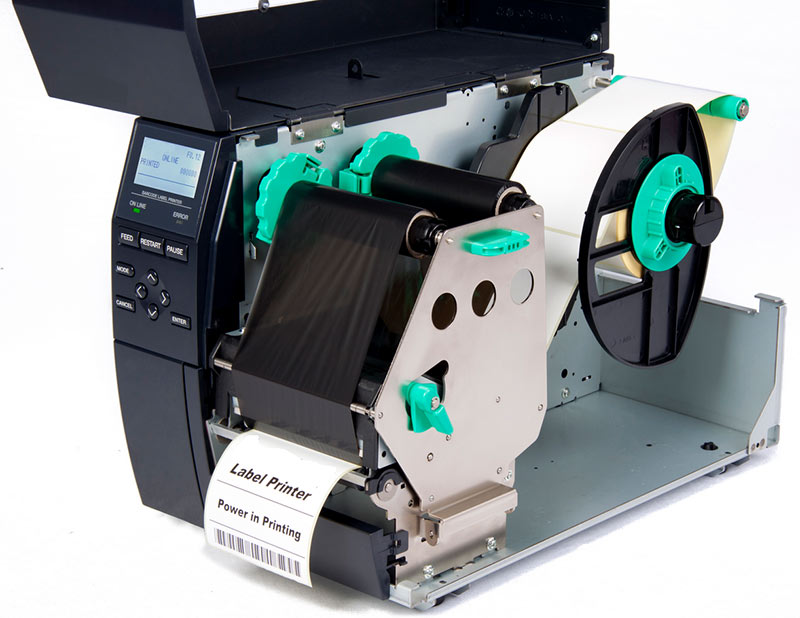

TSB BEX-4

  • Foil saving automatic (from 5mm)
  • Print resolution 305dpi
  • Printing width max. 104mm

Our thermal transfer printer TSD BEX-4 is designed for a print width up to max. 120 mm at a print resolution of 305 dpi (12 dots / mm), a max. Printing speed of about 355 mm / sec. Control via fast USB 2.0 interface or Ethernet. The printer has a near-edge printhead with automatic foil saver.

Technical specifications

  • Quick Change Printhead, Near Edge, 12dots
  • Printing width max. 104,00mm
  • Printing length max. 1.498,00mm
  • Print speed up to 355mm / sec.
  • Foil saving automatic (from 5mm)
  • Passage width: 25.4 – 120mm
  • Max. Outer diameter of label rolls: 210mm
  • Core inner diameter: 76mm
  • Ribbon length up to max. 600m
  • Two-line, illuminated display, multilingual
  • Internal memory 4MB Flash, 64MB SDRAM
  • USB 2.0 interface, Ethernet 10/100
  • Operating instructions on CD
Thermotransferdrucker mit Foliensparautomatik
