Automatic labelling machine TYPE Nicole

Available in 7 variants.

Labelling of round products and application of fresh seal, seal label, lid label, lid flap, closure label.

Labelling round products with up to 3 labels
Basic model 1,500 products / hour
Expansion model 2,500 products / hour

Fast fully automatic labelling machine with 2 parallel offset dispensing heads and conveyor unit.
Total output up to 5,000 products / hour

Fully automatic labelling system with 1 dispensing head and conveyor unit for conical products.
Performance approx. 1500 products / hour

Labelling of flat products.
Labelling with a belly and a back label in one operation
Power approx. 1,500 products / Sd.

labelling round and / or flat products.

Fully automatic labelling machine

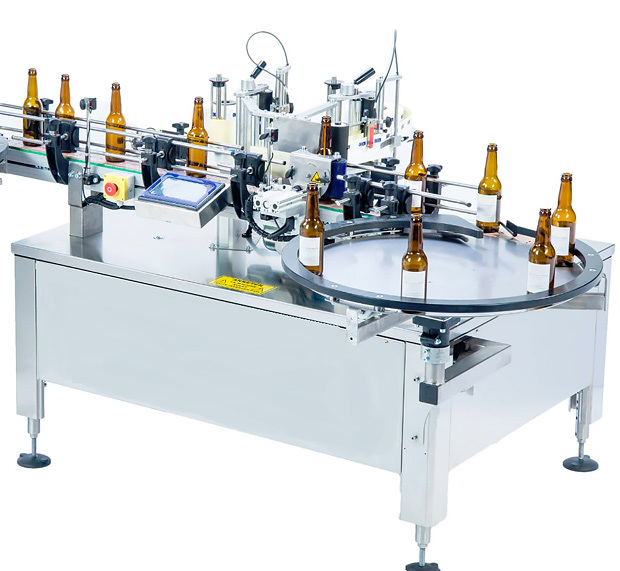

Nicole Mix Up

  • Labelling of round products
  • Application of fresh seal, seal label, lid label, lid flap, closure labe

The Nicole Mix Up fully automatic labelling machine is designed to be labeled from the top of a lid and labeled from the side.

Technical specifications

  • Base made of stainless steel V4A
  • Rollers or feet
  • Powered transport chain with large round turntable made of stainless steel
  • 2 label dispensers for the labeling of round products with a belly and
  • a back label (depending on customer requirements)
  • 1 label dispensing device for labeling from above onto the product e.g. cover
  • Electric height adjustment of all label dispensing heads
  • Upper belt guide for stabilizing the products possible
  • Power min. 1500 products / hour
  • Automatic product centering for all outside diameters from 50mm to 116mm
  • Compact machine dimensions
  • Option „Post-labeling of already labeled bottles“
  • Option notch detection
  • Label core inside diameter 76mm
  • Max. Outer diameter of label rolls 260mm
  • Control panel via a touch screen with fault diagnosis system
  • via display
  • 15 label formats can be saved via key screen
  • Optionally, a hot stamping device can be integrated into the labels (for example Best before Date) for coding
Nicole Mix Up

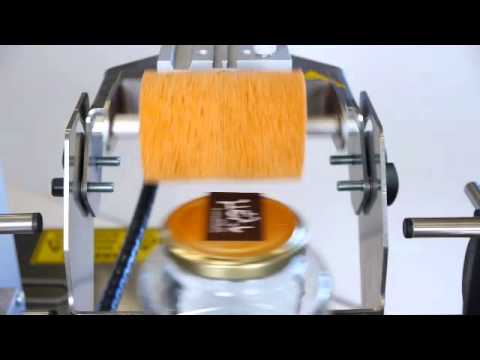

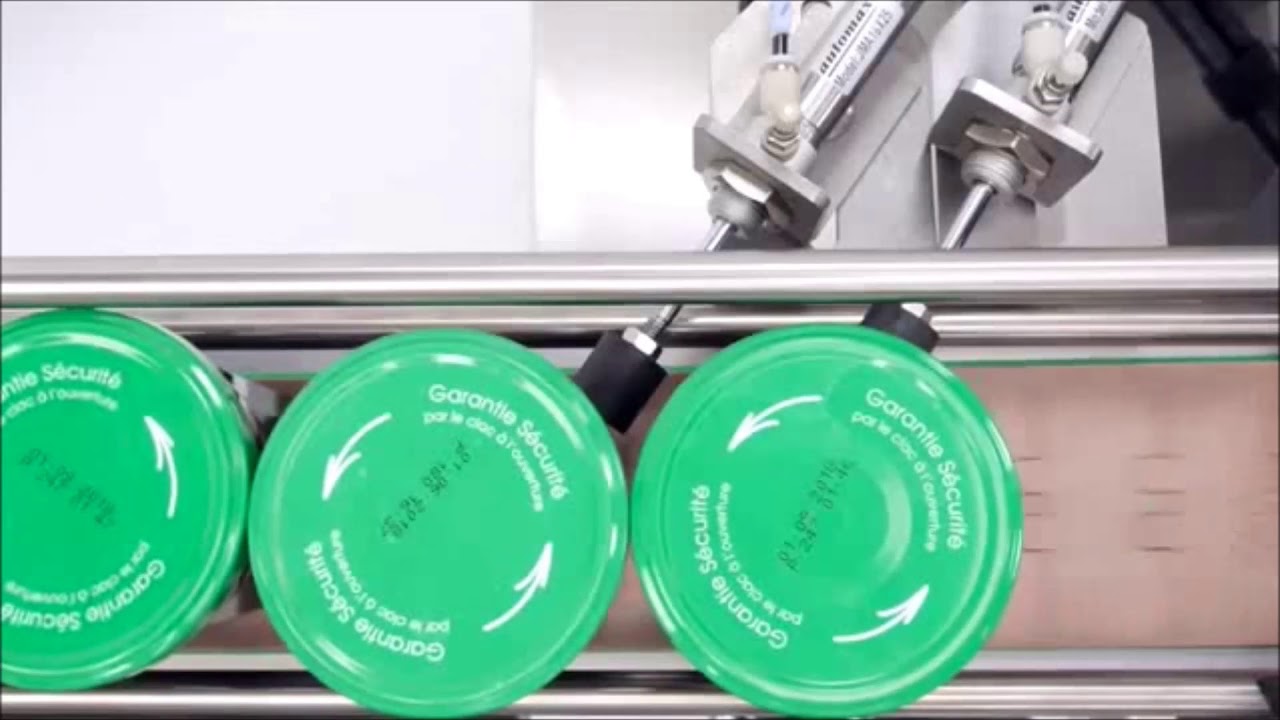

Labelling of glasses I Fully automatic labelling machine NICOLE MIX UP CAP

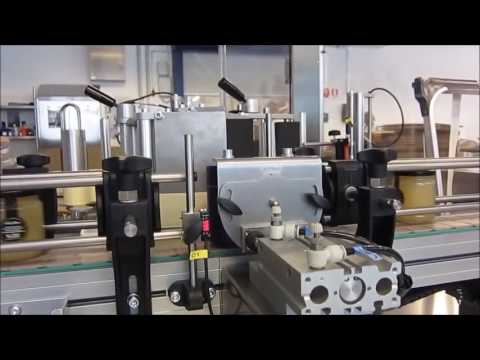

Labelling of glasses with lid label and 2 labels I Fully automatic labelling machine NICOLE MIX UP SEAL

Fully automatic labelling machine

Nicole 1500 / 2500

  • Labelling with up to 3 labels
  • Basic model 1,500 products / hour
  • Expansion model 2,500 products / hour

The fully automatic labelling machine Nicole can apply up to 3 labels in one operation to round products. The base model of Nicole processes a labeling hourly output of min. 1,500 products. The next larger model processes min. 2,500 products.

Technical specifications

The technical specifications follow.

Nicole

Labelling of very small round products I Fully automatic labelling machine NICOLE

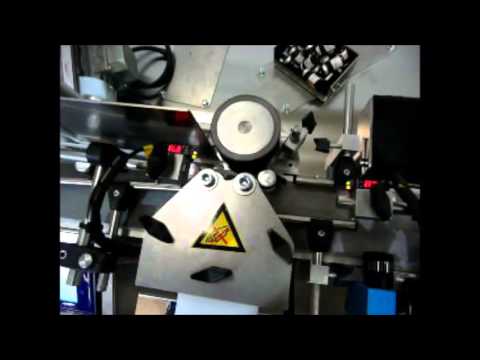

Labelling of small bottles I Fully automatic labelling machine NICOLE 1500

Fully automatic labelling machine

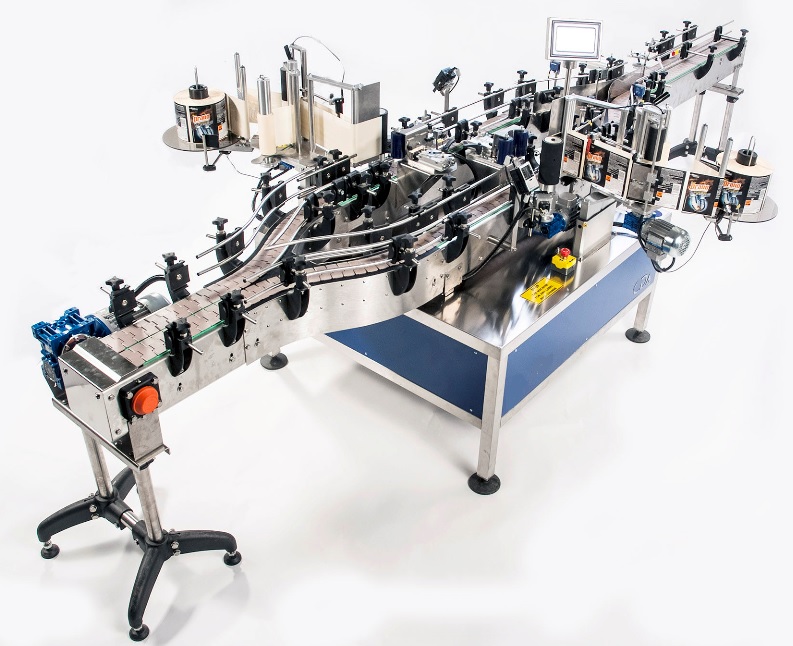

Nicole 5000 Twin

  • Fast, fully automatic labelling machine with 2 parallel offset dispensing heads and conveyor unit
  • Total output up to 5,000 products per hour
  • Also suitable for large label rolls
  • Alarm label end
  • Nonstop function
  • Touch-screen screen for convenient input of donation parameters
  • Memory for 50 label formats

Technical specifications

The technical specifications follow.

vollautomatische Etikettiermaschiene 2 Spendeköpfe

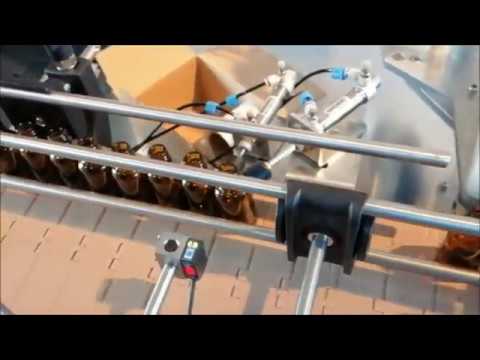

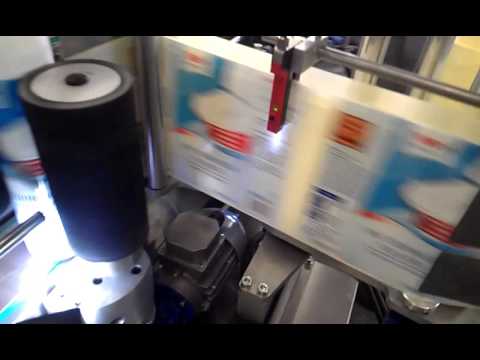

Labelling of plastic bottles I Fully automatic labelling machine NICOLE TWIN

Fully automatic labelling machine

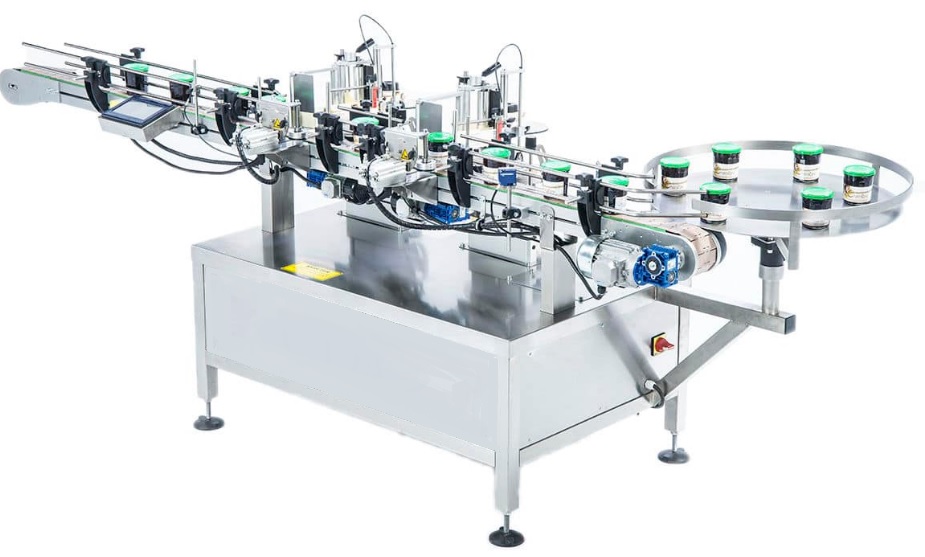

Nicole Konic

  • Fully automatic labelling system with 1 dispensing head and conveyor unit for conical products
  • Performance approx. 1500 products / hour
  • Transport system with double chain, belt width approx. 160mm
  • Inclination adjustment of the dispensing head in X-Y-Z axis
  • System control via touch-screen screen
  • Memory function
  • Electric height adjustment
  • Product counter

with many options

Technical specifications

The technical specifications follow.

Konische Produkte etikettieren

Labelling of conical glasses with 2 labels I Fully automatic labelling machine NICOLE Konic

Fully automatic labelling machine

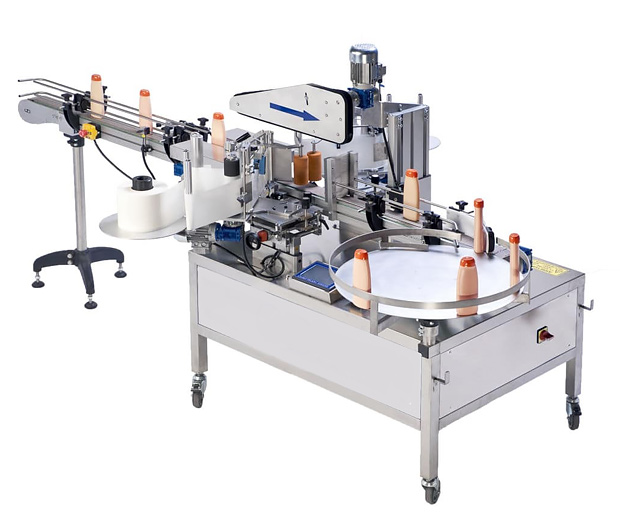

Nicole Side

  • Labelling of a belly and a back label in one operation
  • Labelling of flat products
  • Labeled about 1,500 products / hour

The fully automatic labelling machine Nicole Side can apply a belly and a back label to flat products in one go. It has a labelling hourly output of about 1,500 products (depending on the size of the product or the label).

Technical specifications

  • Base made of stainless steel V4A
  • Rollers or feet
  • Powered transport chain with large round turntable made of stainless steel
  • Up to 3 label dispensers for labeling belly and back labels
  • as well as a neck label or medal
  • Electric height adjustment of all label dispensing heads
  • Performance approx. 1,500 products / hour
  • Automatic product centering for all outside diameters from 50mm to 116mm
  • Compact machine dimensions
  • Option „Post-labeling of already labeled products“
  • Option notch detection
  • Label core inside diameter 76mm
  • Max. Outer diameter of label rolls 260mm
  • Control panel via a touch screen with fault diagnosis system
  • via display
  • 15 label formats can be saved via key screen
  • Optionally, a hot stamping device can be integrated into the labels (for example Best before date) for coding

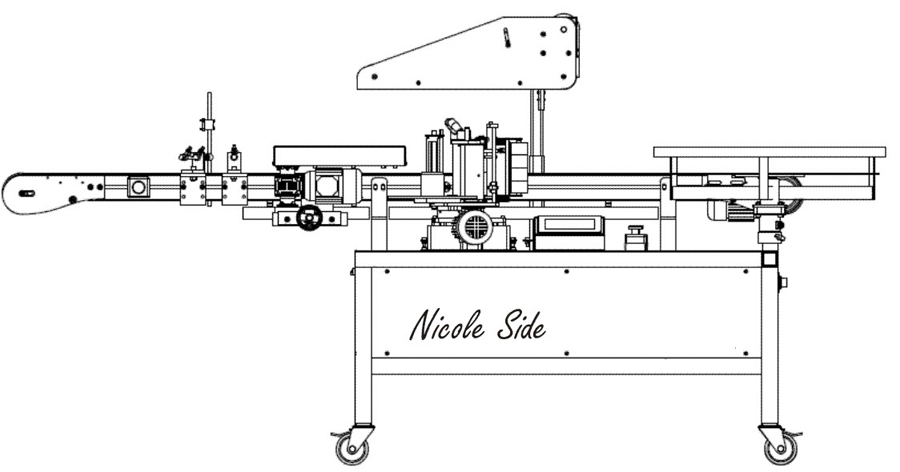

Nicole Side

Labelling of plastic bottles I Fully automatic labelling machine Nicole Side

Fully automatic labelling machine

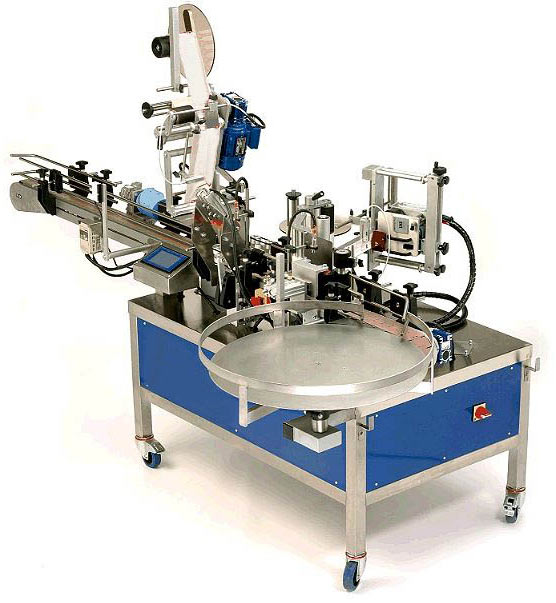

Nicole Mix Side

  • Labelling of round and / or flat products

The Nicole Mix Side fully automatic labelling machine can label both round products and flat products. Up to 3 labels can be dispensed on round products and up to 2 labels on flat products.

Technical specifications

The technical specifications follow.

Nicole Mix Side

Labelling round & square I Fully automatic labelling machine Nicole Mix Side
