External label dispensing systems

Available 4 models

For flat surfaces
Labels from above or from the side
Label width 15 – 250mm

Pressure dispensing system with pneumatic applicator
Labels from above and from the side
Label width 25 – 118mm

For flat surfaces
Labels from above or from the side
Label width 15 – 140mm

Apply labels with our label dispensing system

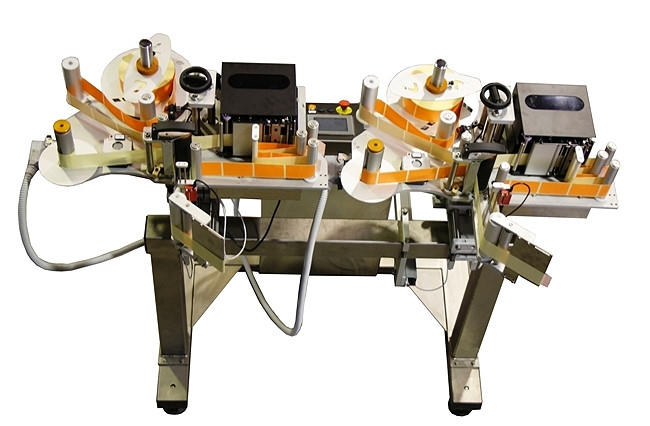

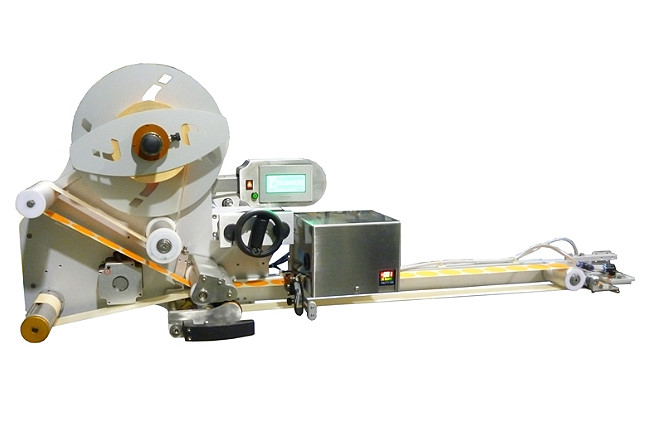

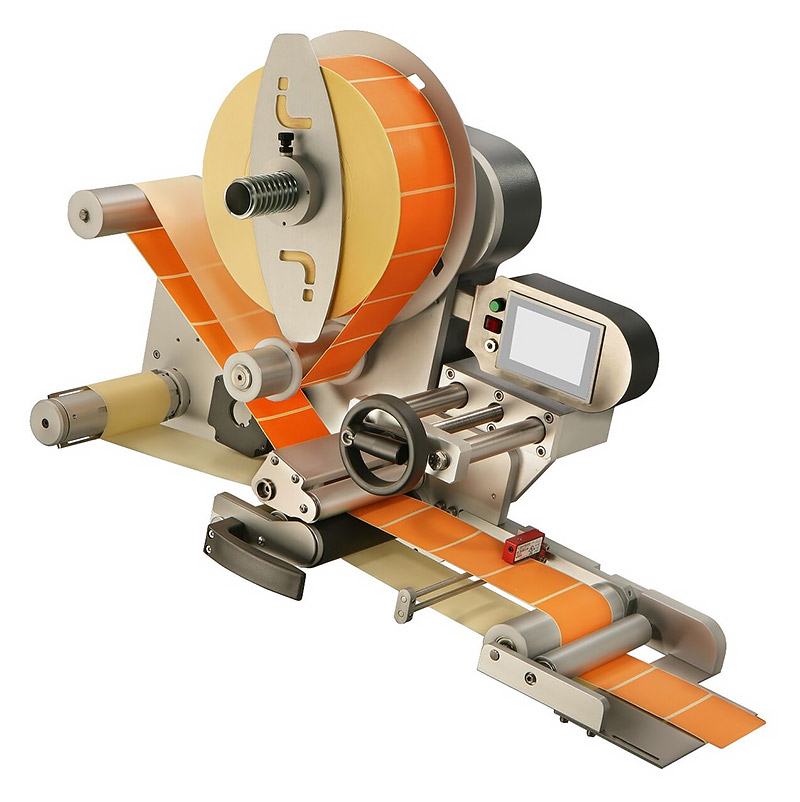

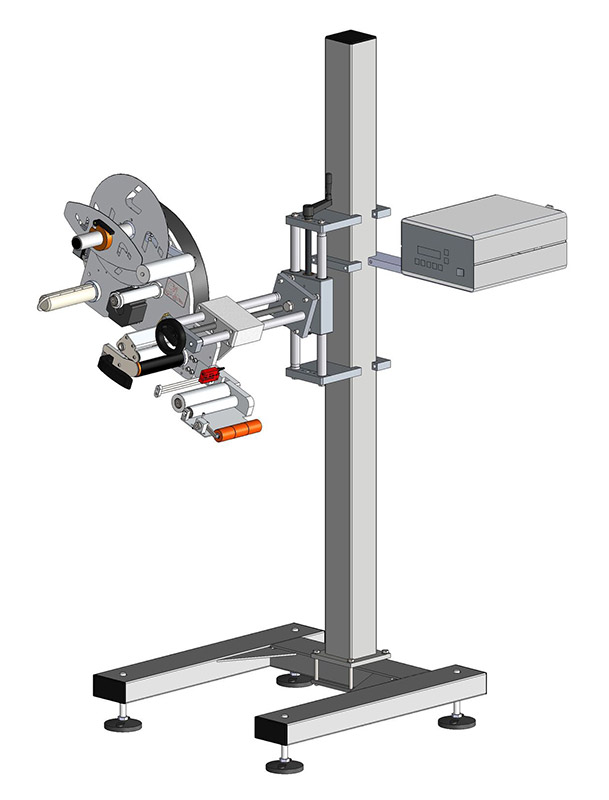

LABELX

  • Label dispensing system for flat surfaces
  • Labels from above or from the side
  • Label width 15 - 250mm

LABELX mechanical robustness, simplicity and, above all, straight running of the label web paired with an appealing design are the main features that characterize this new technical solution of the LABELX series.

In addition, a variety of different system applications has been developed with which this labeling system can be used for a wide variety of tasks. There are also a variety of different standard mounts to the labellers LABELX series easy and efficient both in automatic systems as well as packaging or. Packing machines easily and above all easy and fast to integrate.

Technical specifications

  • Available versions: Left version / Right version
  • Dispensing speed: up to 35m / min.
  • Dispensing accuracy: ± 1mm
  • Label length: 10 – 350mm
  • Label width: 15 – 250mm
  • Outer diameter label roll: up to max. 300mm
  • Label roll holder with mechanical unwinding unit
  • Aluminum limiters with screw-type quick-release fastener
  • Mechanically operating trigger and feed drive for label tape
  • Stepper motor technology of the drives
  • Take-up unit for carrier tape with quick-release technology
  • Fixed donation edge
  • Adjustable label sensor for stop signal
  • Rotatable product holder with pressure roller for labels
  • Power supply 240V, 50 / 60Hz

Electronic control unit with key screen and the following function keys:

  • Variable adjustable dispensing speed
  • Setting the donation delay
  • Count up product counter
  • Automatic missing label detection
  • End alarm for label roll
  • Tape break alarm from carrier tape
Etiketten Spendesystem LabelX

Apply labels with our label dispensing system

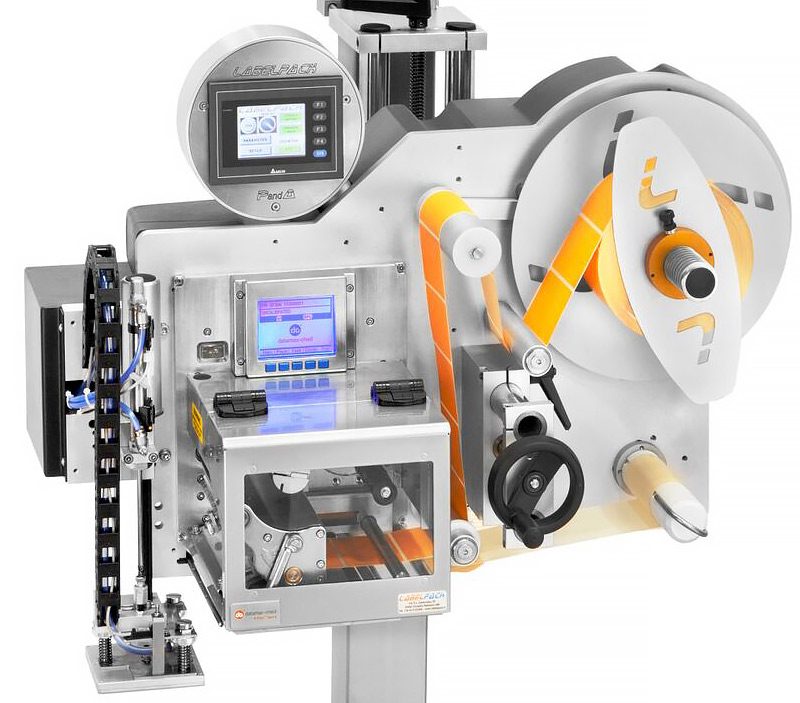

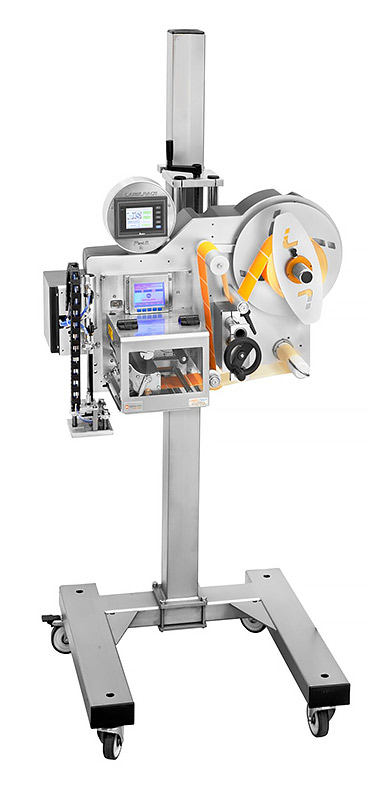

PandA

  • PandA Print & Apply as a pressure dispensing system with pneumatic applicator
  • PandA Pritn & Apply as top and side pressure dispensing system
  • Labels width 25 - 118mm

Labelling of cardboard boxes with a previously printed label by means of thermal transfer and subsequent roll-on of label over 1 edge with pneumatic applicator.

PandA’s Print & Apply solutions are ideal solutions for incorporation into automatic packaging machines, at the end of packaging and packaging machinery, as well as conveyor and automatic pallet packing systems. The efficiency and flexibility of the PandA range is ensured by the incorporation of industrial printing units from various manufacturers using the thermal transfer printing process.

options:

  • with stand
  • label alarm
  • signal light

Technical specifications

  • Available versions: Left version / Right version
  • Printing method: direct thermal printing / thermal transfer printing
  • Print resolution: 300dpi
  • Print length: 6 – 2.530mm
  • Print width: approx. 105,7mm
  • Print speed: Up to 304mm / sec.
  • Label web width: Min. 25mm / Max. 118mm
Etikettenspendesystem PandA

Apply labels with our label dispensing system

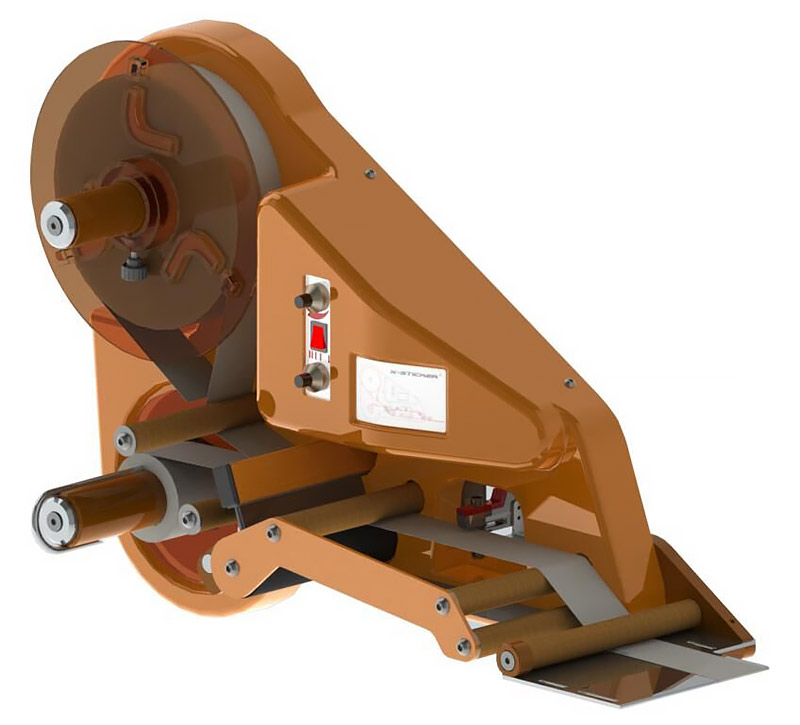

X-Sticker

  • Label dispensing system for flat surfaces
  • Labelling from above or from the side
  • Labels width 15 - 140mm

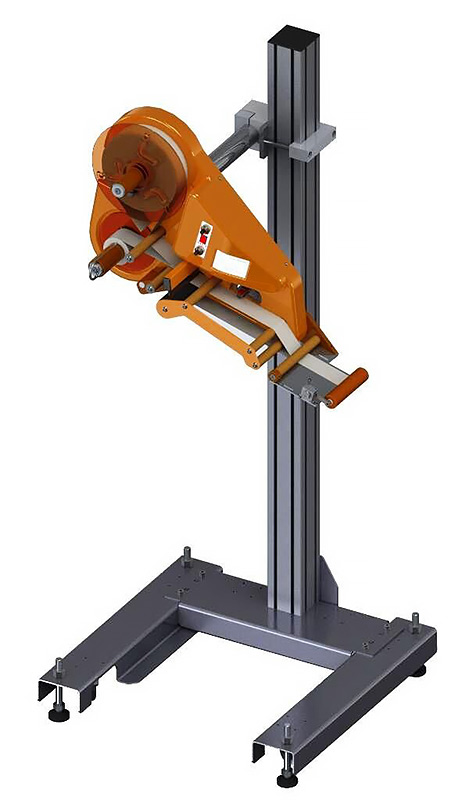

Plus pedestal in different versions.

Technical specifications

  • Available versions: Left version / Right version
  • Dispensing speed: Up to 20m / min.
  • Dispensing accuracy: ± 1mm
  • Label length: 10 – 350mm
  • Label width: 15 – 140mm
  • Outer diameter label roll: up to max. 250mm
  • Label roll holder with mechanical unwinding unit
  • Aluminum limiters with screw-type quick-release fastener
  • Mechanically operating trigger and feed drive for label tape
  • Stepper motor technology of the drives
  • Housing cover made of impact-resistant ABS plastic
  • Take-up unit for carrier tape with quick-release technology
  • Fixed adjustable and adjustable by 90 ° dispensing edge
  • Adjustable label sensor

Electronic control unit and the following function keys:

  • Variable adjustable dispensing speed
  • Setting the donation delay
  • Power supply 240V, 50 / 60Hz
Etikettenspendesystem X-Sticker
