Directly printing of labels, boxes, bottles, glasses and other products

Available 3 models

Ink-Jet Printing Systems

Maximum printing height 12.7mm
Up to 6 lines

Piezo printhead with 128 nozzles
Maximum printing height 18mm
Up to 8 lines

Piezo printhead with 382 nozzles
Maximum printing height 53mm
Up to 8 lines

Directly printing of labels, boxes, bottles, glasses and other products

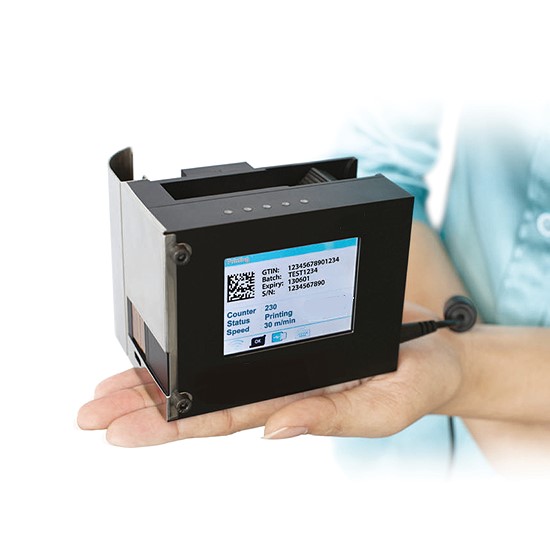

Ink-Jet Printing System PD12

  • Maximum printing height 12.7mm
  • Up to 6 lines

The most compact, reliable and robust inkjet printer on the market today. Use our new „PD 12 PRO“ to encode expiration dates, LOT or lot numbers, time and date or graphics on simple or sophisticated surfaces of any kind.

The operation is extremely easy with the aid of an electronic control which has a key screen. A print format can be set up with this controller, or you can use the optional PC print design software, which has a very simple and user-friendly interface. To send the print format to your controller, you only need a USB cable.

Technical specifications

  • Dimensions: 107.5 x 74.5 x 83 mm (LxWxH)
  • Weight: approx. 450 g
  • Maximum resolution: 600 x 600dpi
  • automatic, co-rotating 2.8 inch TFT LCD display with 256K colors
  • Plug-and-print ink cartridges
  • Print up to 6 lines 1.69 to 12.7 mm
  • use all Windows fonts
  • Menu languages: German (default), Chinese, Japanese, French, English, Spanish,
    Finnish, Thai, Russian, Arabic, Portuguese and Vietnamese
  • „Stand-alone operation“ with USB keyboard direct connection, or with PC control
  • Wi-Fi and Bluetooth connection via smartphones and tablets with Android and iOS operating systems
  • Wireless keyboard for direct input

options:

  • incremental encoder
  • mounting bracket
  • external product recognition via sensor
  • separate stand
  • ink cartridges
Kartons & Produkte bedrucken

Label coding I Inline coding system PD12 minijet

Directly printing of labels, boxes, bottles, glasses and other products

Ink-Jet Printing System PD18

  • Piezo printhead with 128 nozzles
  • Max. printing height of 18mm
  • Up to 8 lines

Our PD 18 is an inkjet printing system equipped with a 128-nozzle piezo print head designed for absorbent and non-absorbent surfaces. With this print head, you are able to work one to eight lines on a max. Print height of 18mm to code.

The operation of our inkjet printing systems is extremely easy with the help of an electronic control, which has a key screen. A print format can be set up with this controller, or you can use the optional PC print design software, which has a very simple and user-friendly interface. To send the print format to your controller, you only need a USB cable.

Technical specifications

  • Piezo printhead with 128 nozzles
  • Print one to eight lines
  • maximum printing height 18mm

options:

  • incremental encoder
  • mounting bracket
  • external product recognition via sensor
  • separate stand
  • ink cartridges
Kartons direkt Ink-Jet bedrucken

Directly printing of labels, boxes, bottles, glasses and other products

Ink-Jet Printing System PD53

  • Piezo printhead with 382 nozzles
  • Max. printing height of 53mm
  • Up to 8 lines

Our PD 53 is an inkjet printing system equipped with a 382-nozzle piezo printhead designed for absorbent and non-absorbent substrates. With this printhead you are able to print directly and non-contact on your products, with a max. Pressure height of 53mm.

The operation of our inkjet printing systems is extremely easy with the help of an electronic control, which has a key screen. A print format can be set up with this controller, or you can use the optional PC print design software, which has a very simple and user-friendly interface. To send the print format to your controller, you only need a USB cable.

Technical specifications

  • Piezo printhead with 382 nozzles
  • maximum printing height 53mm

options:

  • incremental encoder
  • mounting bracket
  • external product recognition via sensor
  • separate stand
  • ink cartridges
INk-Jet Drucksystem DP53
