Fully automatic labeller TYPE LABEL-X

Available in 4 variants

Labelling of bottles, cosmetic jars, tins, lip and mascara tints, glass and plastic bottles

Labelling of bottles, cosmetic jars, glass and plastic bottles with 1 – 3 label dispensing heads

Labelling of empty cosmetic tubes

Fully automatic labelling machine

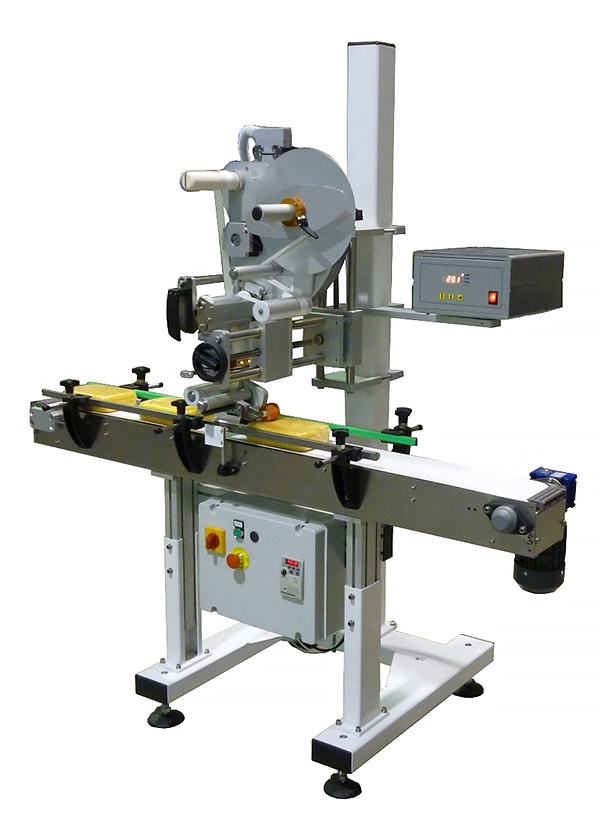

LABEL-X COMPACT

  • Stichpunkt 1
  • Stichpunkt 2

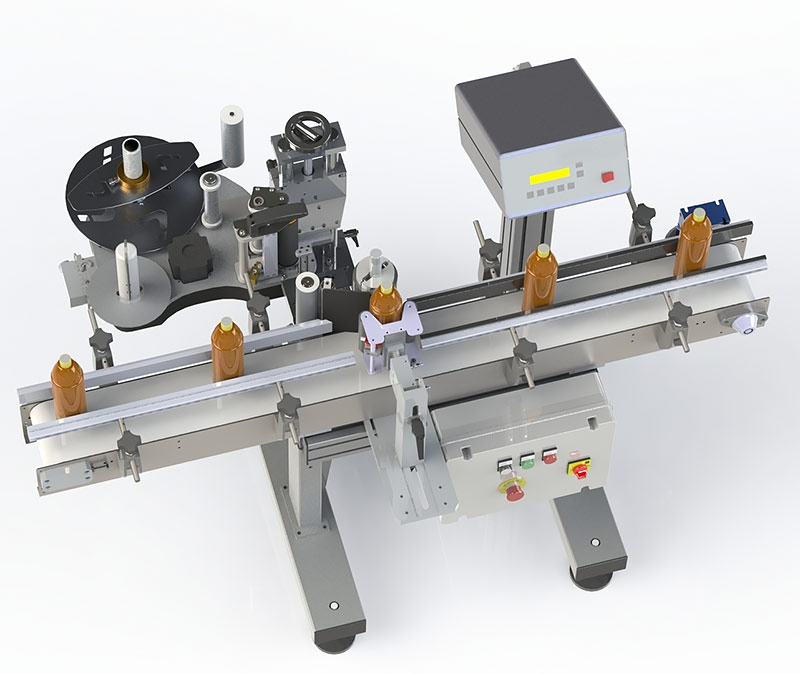

This fully automatic labelling system is designed for labelling of self-adhesive labels on the most diverse surfaces of round containers such. As bottles, cosmetic jars, cans, lip and mascara tears, glass and plastic bottles or any other cylindrical products.

Here, the labels are applied to rotating products which are pressed during the dispensing process with a 3-roller applicator. Optionally, there are various optional accessories that can also be used to label conical and rectangular products. It is also possible to supply systems as a combination system for round as well as angular products.

Technical specifications

  • Label dispensing system LABELX JR-140 ER
  • Movable pinch roller
  • Optical sensor for product recognition
  • Conveyor belt module with flat belt
  • Applicator for all-round labeling on round products
  • Basic frame of the COMPACT series in powder-coated steel
  • Horizontal and vertical fine adjustment by means of micrometer adjustment

options:

  • LABELX JR 250 ER
  • Label dispensing system LABELX JR-250 ER for label heights up to 250mm
  • Labeling of oval or rectangular products
  • Pre-alarm for near end of the label web
  • Basic frame of the COMPACT series in stainless steel (AISI 304)
LABELX COMPACT Vollautomatische Etikettiermaschine

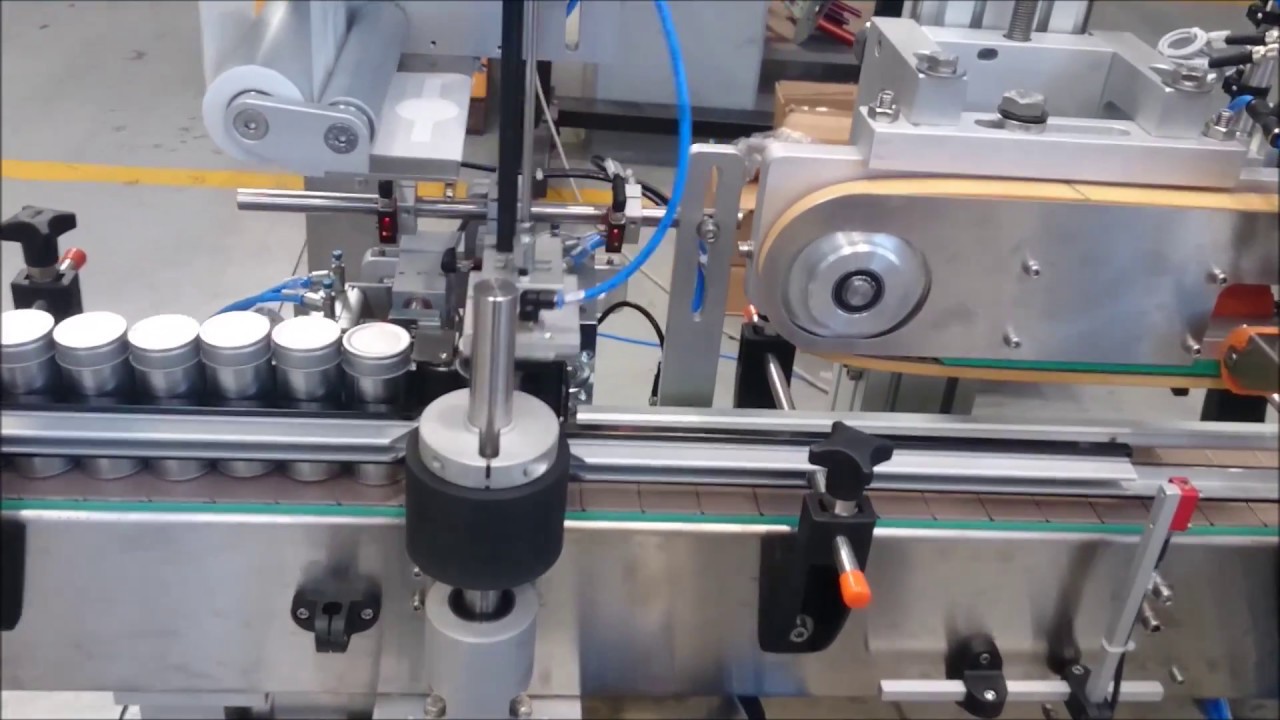

Labelling of plastic cans I Labelling machine LABEL X COMPACT WA 140

Fully automatic labeling machine

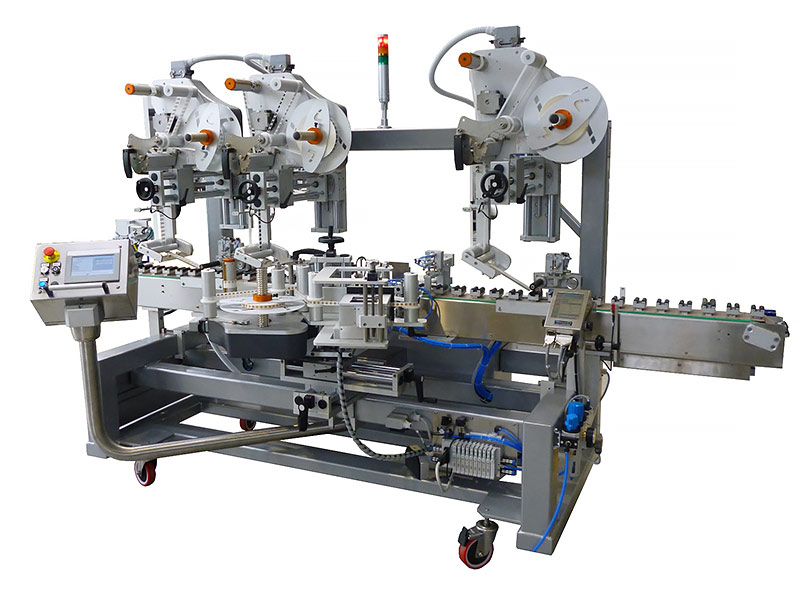

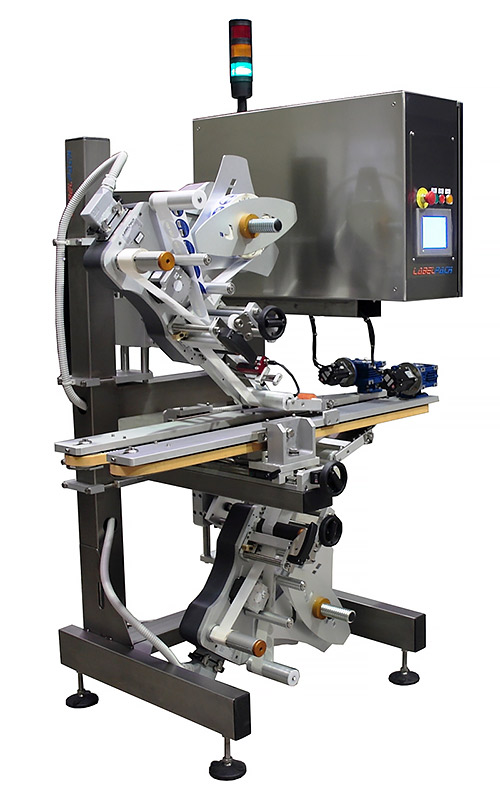

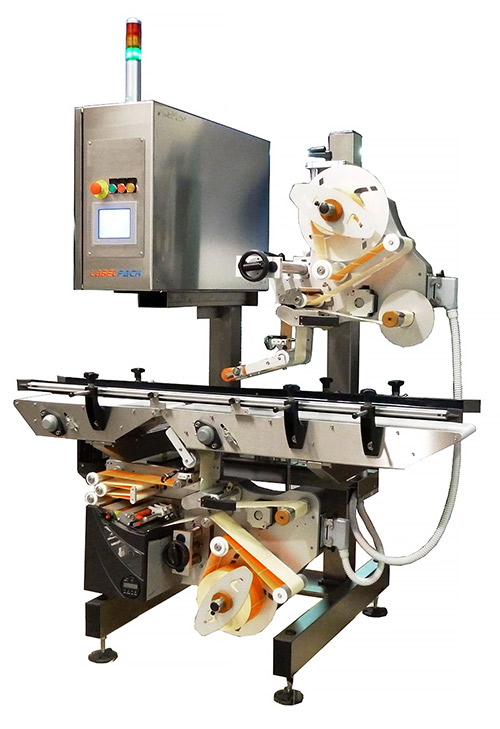

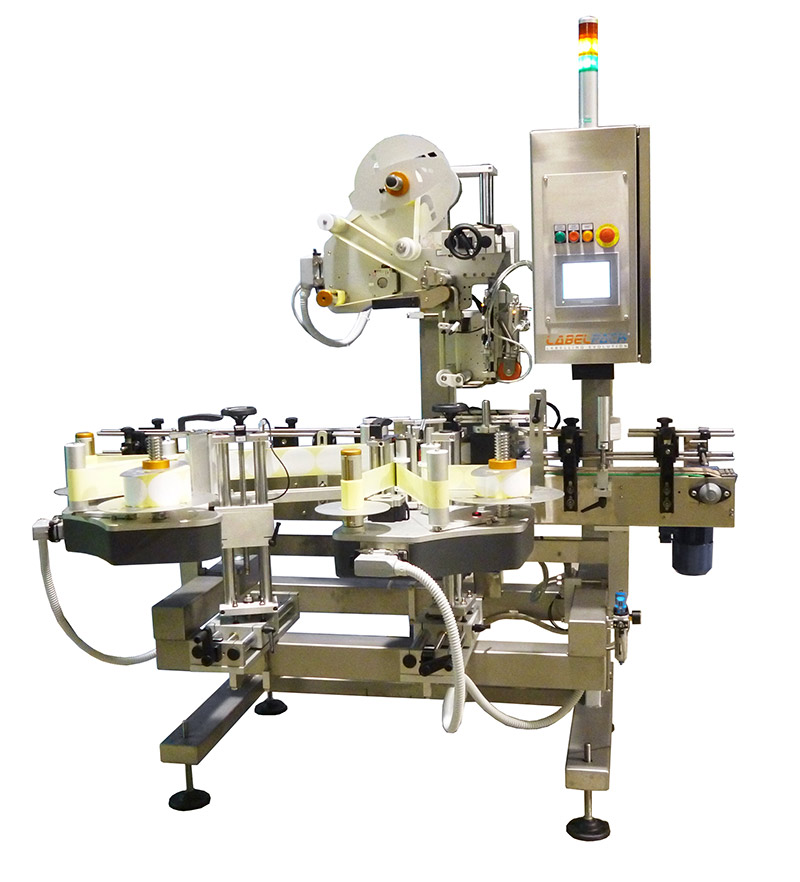

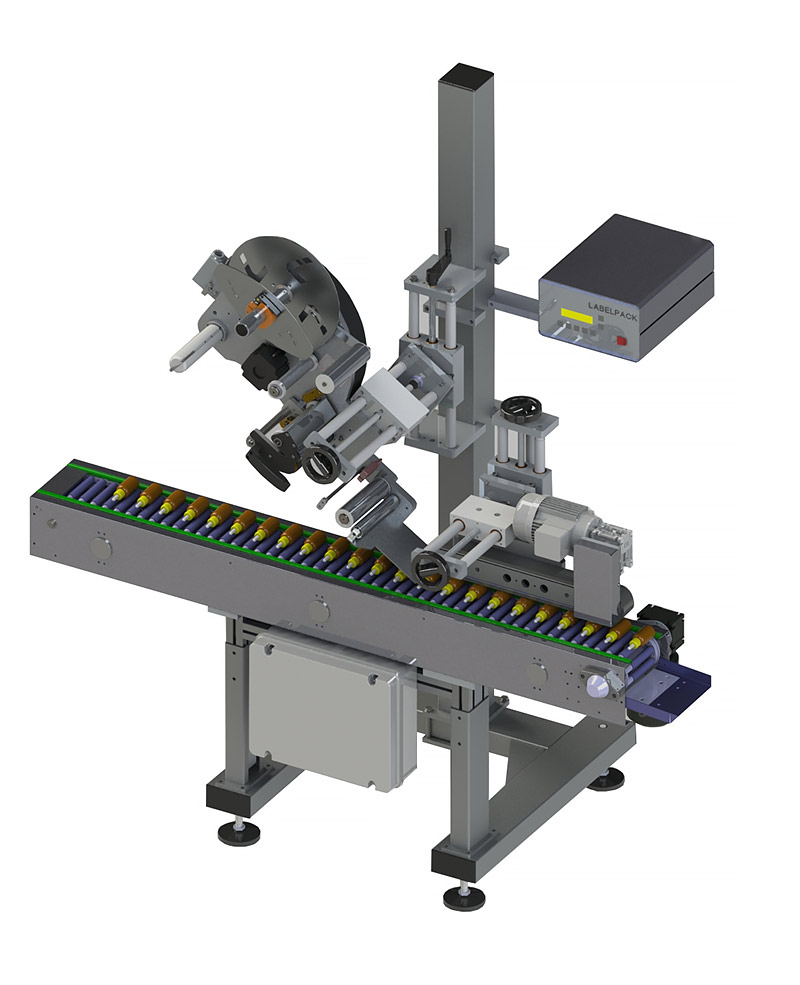

LABEL-X MODULAR

  • Versions with 1 - 3 label dispensers for self-adhesive labels
  • Self-adhesive labels can be applied from above, below or from the side

This fully automatic labelling system for self-adhesive labels is ideal for dispensing labels on bottles, cosmetic jars, glass and plastic bottles and all other cylindrical products. The system is designed for the labelling of round products in a single pass.

LABELX Modular is a kominierbares labelling system for a variety of applications and requirements in the field of labelling and labelling of various products.

There are versions with 1 – 3 label dispensers for self-adhesive labels. The self-adhesive labels can be applied from above, below or from the side.

LABELX Modular is a label dispensing system for:

  • for seal labels
  • for teabag labelling
  • small round bottles
  • small oval bottles
  • round products
  • Products
  • cartridges
  • dual cartridge

Labelling systems, coding systems, ink-jet systems, thermal transfer printers, hot stamping devices etc. can be integrated.

Please call us and tell us your labelling request.
We are happy to advise you.

Technical specifications

  • Label dispensing system LABEX 140 ES
  • Movable pinch roller
  • Horizontal height and vertical lateral adjustment (X and Y axis) by means of micrometer adjustment
  • Conveyor belt module with flat belt
  • Applicator for wrap-around labeling, motorized by means of AC motor with rotary encoder
  • Base frame of the series MODULAR made of lacquered steel (stainless steel version available on request)
  • Housing for central electronics and touch screen
  • Electronics with memory for donor parameters

options:

  • LABELX 250 ES
  • Pre-alarm for near end of label strip
  • Ultrasonic sensor for transparent labels
  • Coding Systems
  • Inline thermal transfer printing system
Vollautomatisch etikettieren LABEX Modular

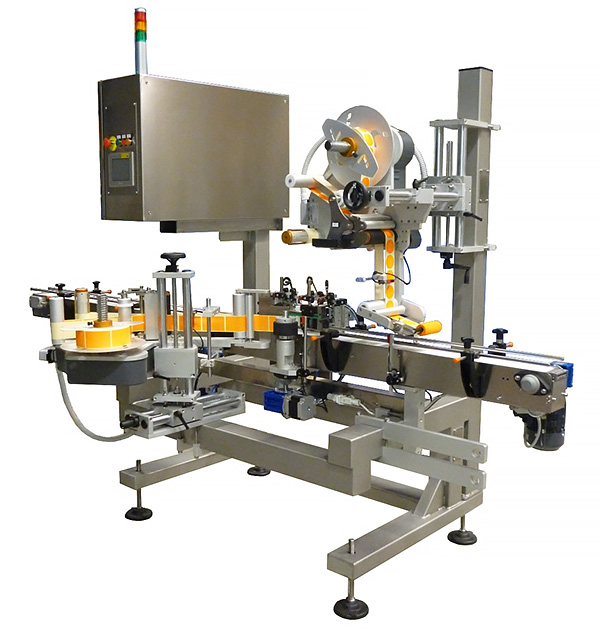

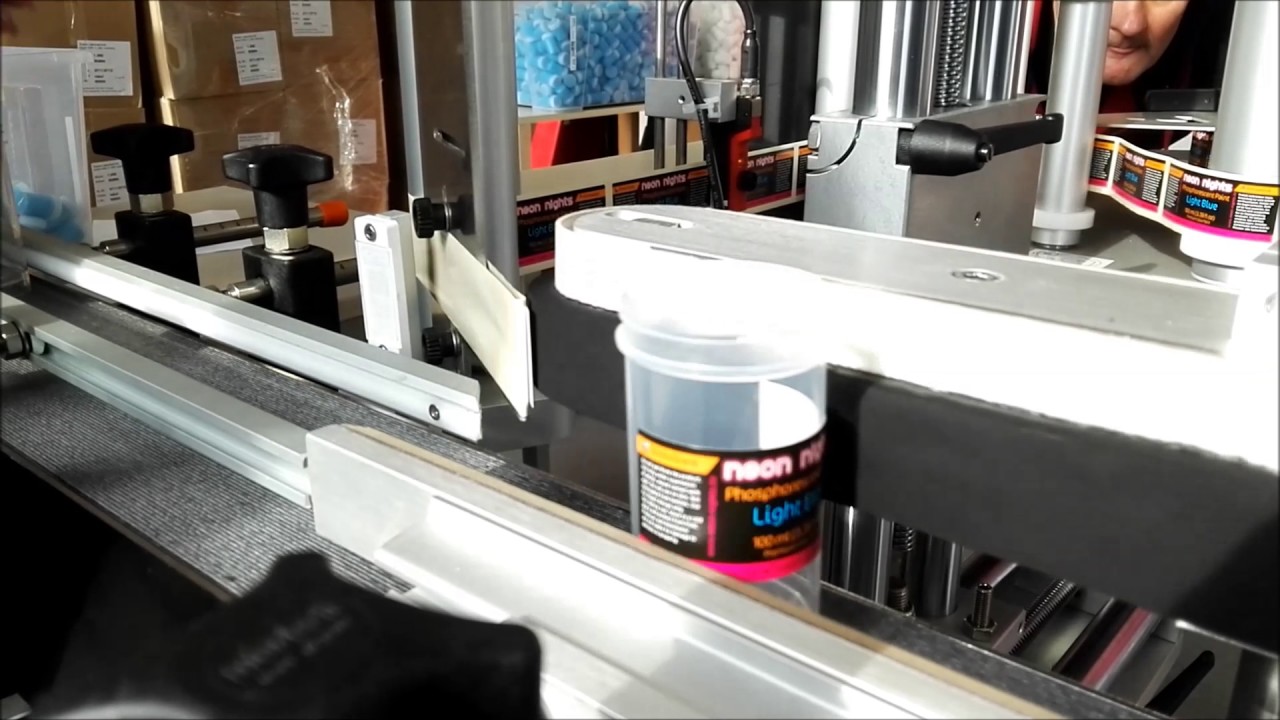

Labelling of a seal + wrap-around label I Labeller LABEL-X MODULAR MS

Fully automatic labeling machine

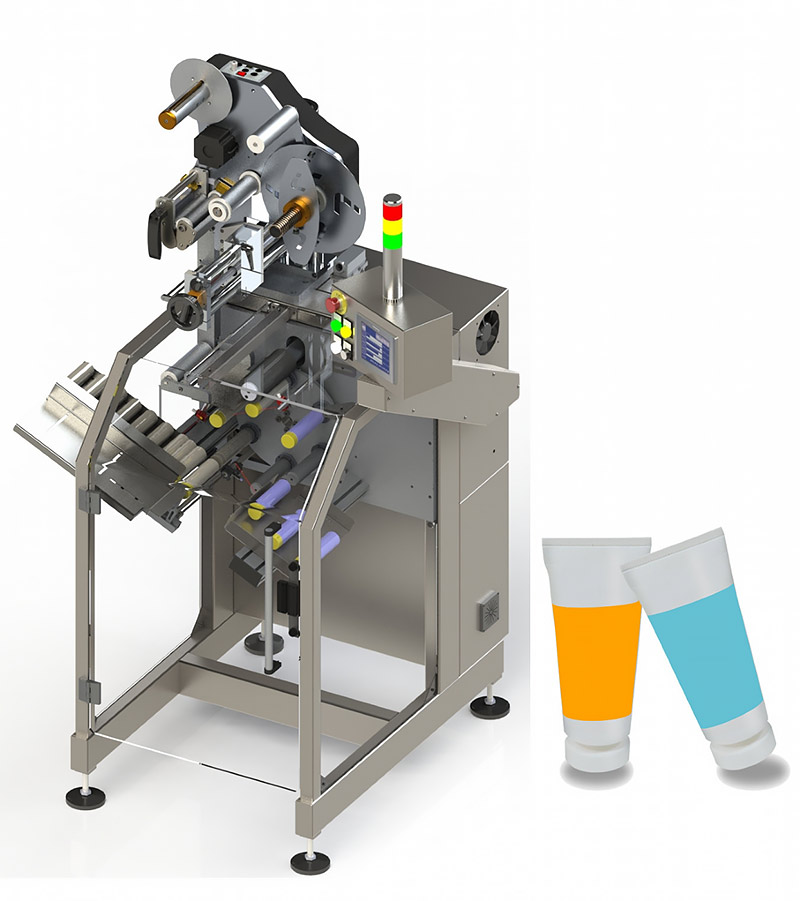

LABEL-X MASTER

  • Stichpunkt 1
  • Stichpunkt 2

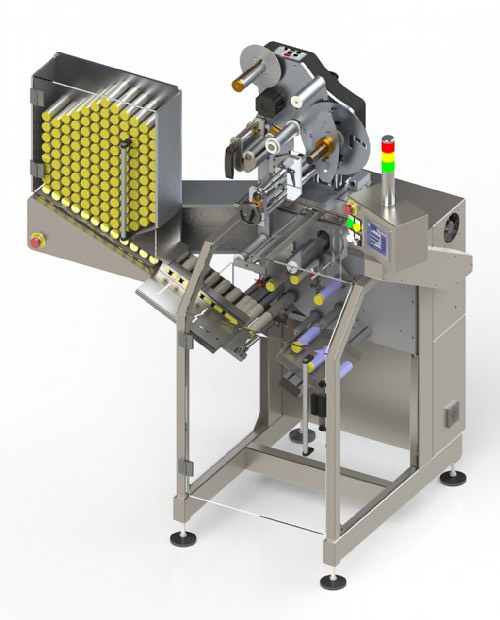

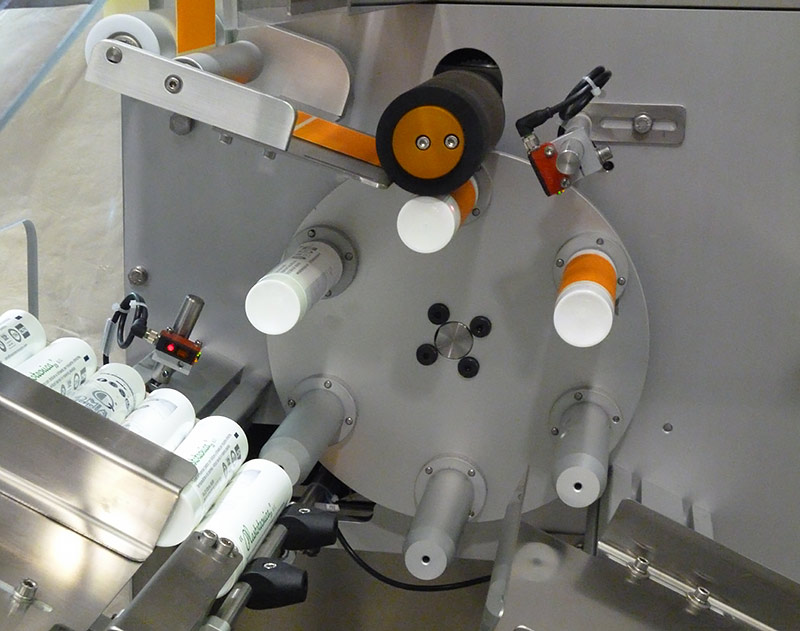

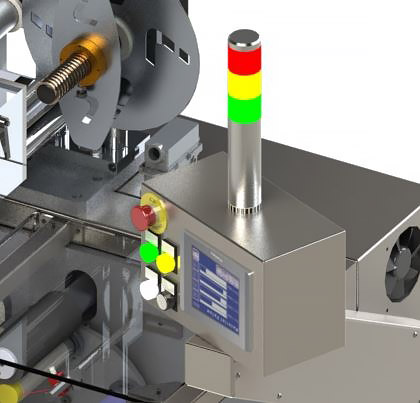

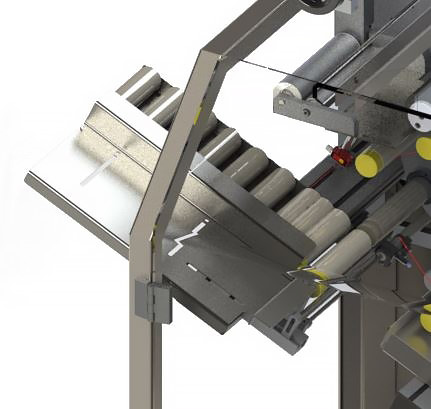

This innovative solution has been designed for the labelling of empty cosmetic tubes. The tubes are fed either manually or automatically and conveyed to the main carousel where a series of spindles receive the tubes and convey them to the various stations. Label application is controlled by both LABELX 140 ES and a product rotation system with possible automatic label position orientation relative to the lid opening. The main frame is made of stainless steel with the balcony configuration and the position of the control box on the back of the system, as well as security protection made of polycarbonate. The labelling system is controlled by a PLC with touch-screen control panel.

Technical specifications

  • Labelling unit LABELX 140 ES
  • Horizontal and vertical micro-control unit with numerical indicators
  • Semi-automatic product feeder
  • Conveyor module with 6 mechanical position wheels
  • Product rotator
  • Automatic speed synchronization
  • MASTER main frame
  • Overall protection of transparent polycarbonate
  • Centralized electronic control unit with touch screen control panel
  • PLC unit with memory of the setting parameters
  • Speed ​​up to 50 rpm (depending on product size and label)

options:

  • LABELX 250 ES (250mm label width)
  • Pre-alarm end role
  • Ultrasonic sensor for transparent labels
  • Sensor for label alignment
Vollautomatische Etikettiermaschine Tuben & Hülsen

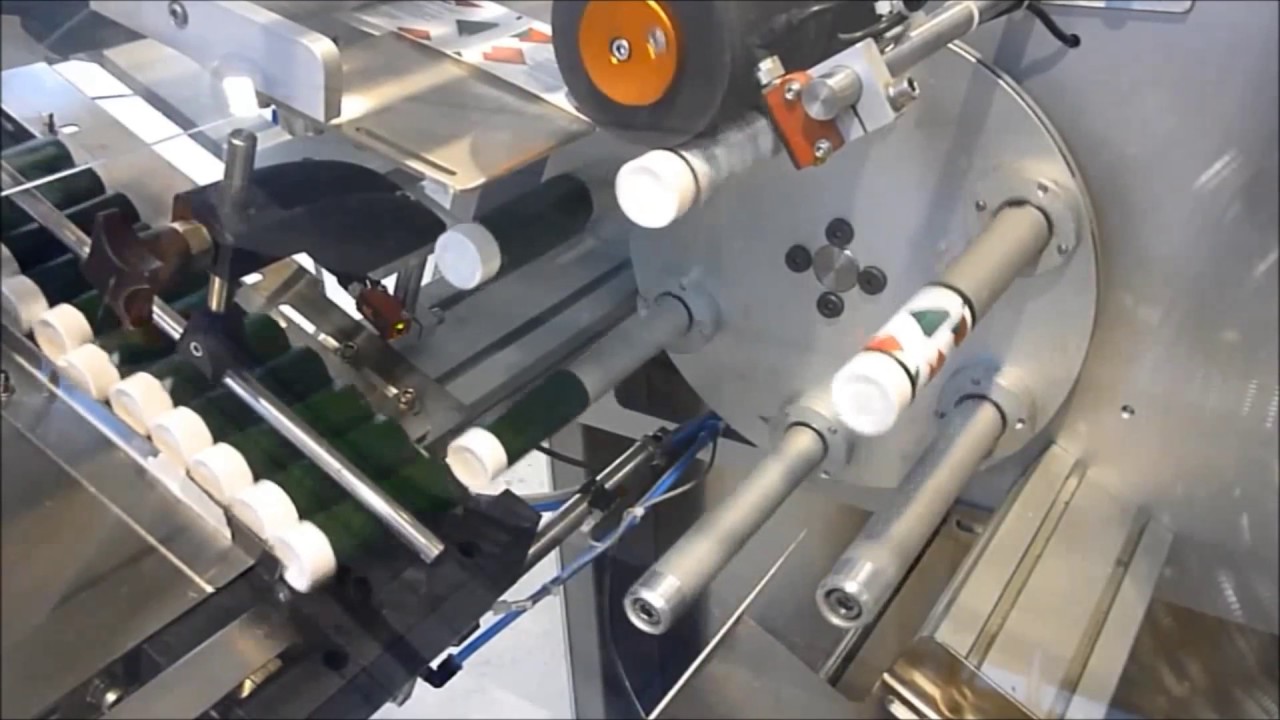

Labelling of empty cartridges / tubes I labeller LABEL-X MASTER TT
