Fully automatic labelling machine TYPE Stephanie

  • Labelling standing products with 1 label
  • Application of the labels with compressed air for a perfect fit of the labels even with problematic glass
  • Fast and perfect labelling even for small products

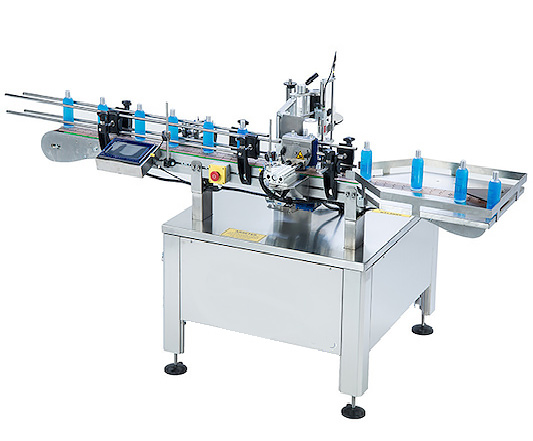

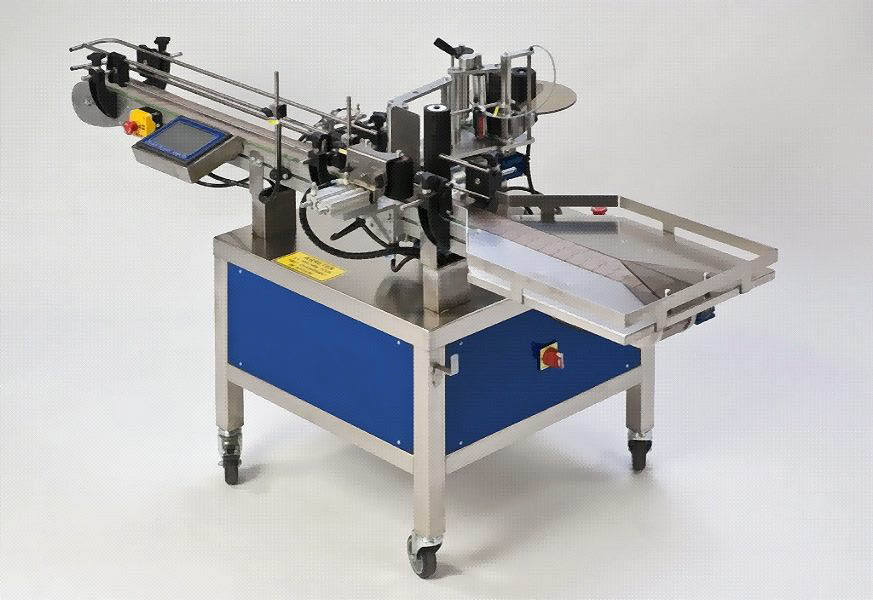

The fully automatic labelling machine Stephanie, is equipped with a transport chain, a dispensing head to apply a belly or wrap-around label and a square collection table for about 30 products. It impresses with its very compact design as well as the accurate dispensing of self-adhesive labels on round / cylindrical products.

The machine is operated via a very comfortable and user-friendly, colored button screen. The setting of the delay times is therefore child’s play and quickly achieves the desired result.

Technical specifications

  • Base made of stainless steel V4A
  • Rollers or feet
  • 1 dispenser head with electric height adjustment, designed for labelling of
  • a belly or wrap around label
  • System performance approx. 1,500 bottles / hour
  • Label size max. 1,500mm x 160mm (L x W)
  • Label size min. 20mm x 25mm (L x W)
  • Core inner diameter 76mm
  • Max. Outer diameter of label rolls 260mm
  • Control panel touch-screen display with memory for 15 different
  • Apply parameters
  • 1 optical sensor for triggering the apply signal self-diagnostic system via display

options:

  • Post-labelling option for already labeled products
  • Option abdominal and back label on a roll
  • Special sensor for the recognition of transparent labels
  • System for lifting handles in the area of ​​the dispensing station
  • Hot stamping system
  • Special product holder for conically shaped products
  • Double transport chain for products with outer diameter> 110mm
Stephanie Vollautomatische Etikettiermaschine

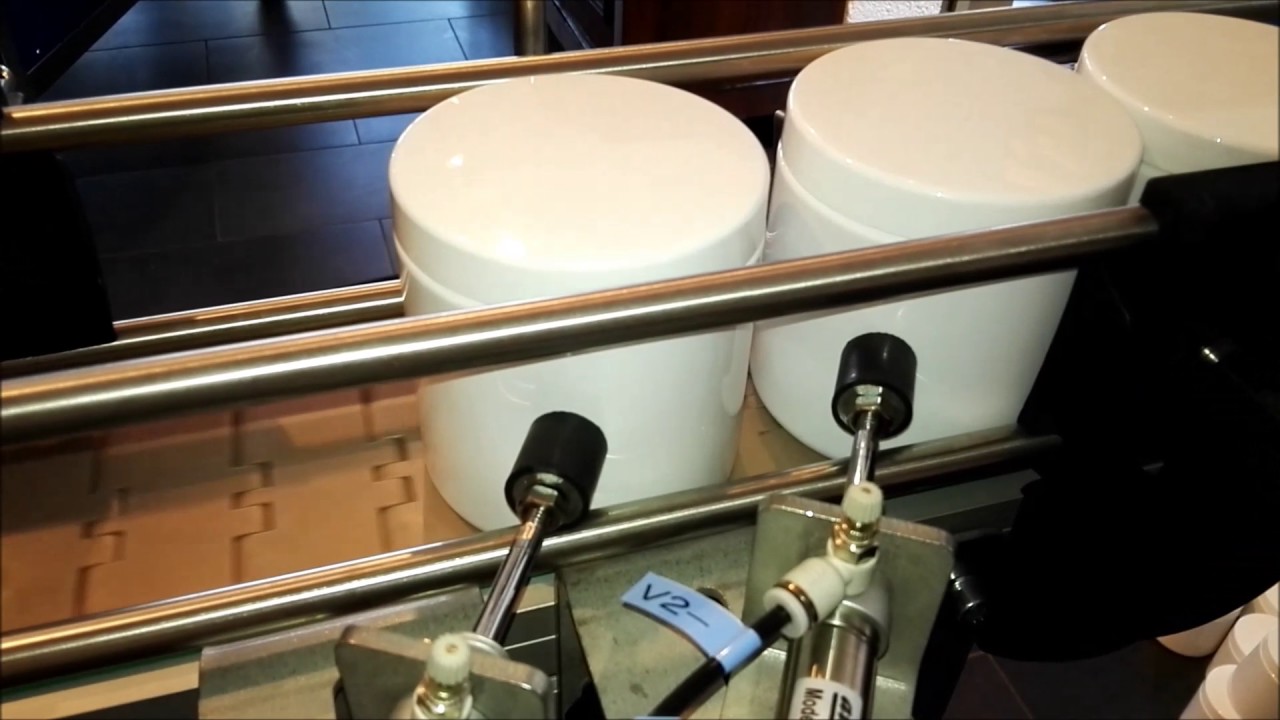

Labelling & coding of jars / plastic cans I Fully automatic labeller STEPHANIE
