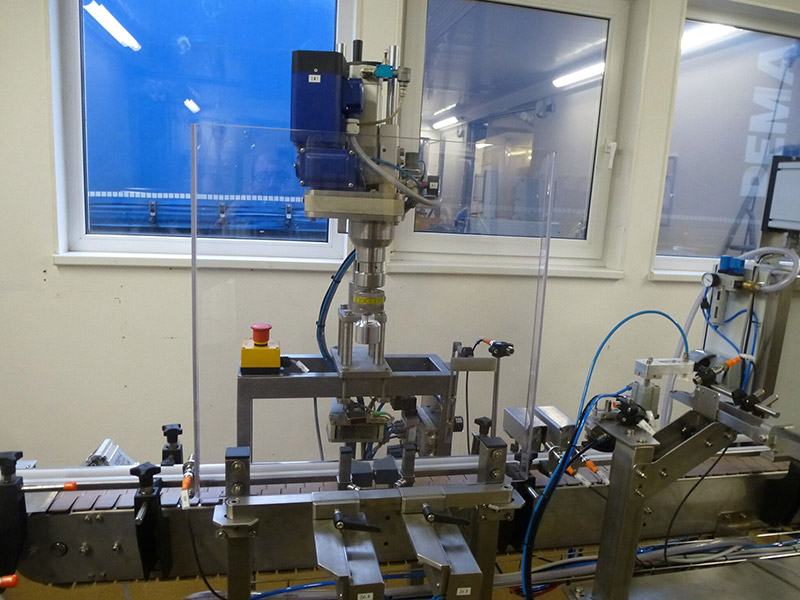

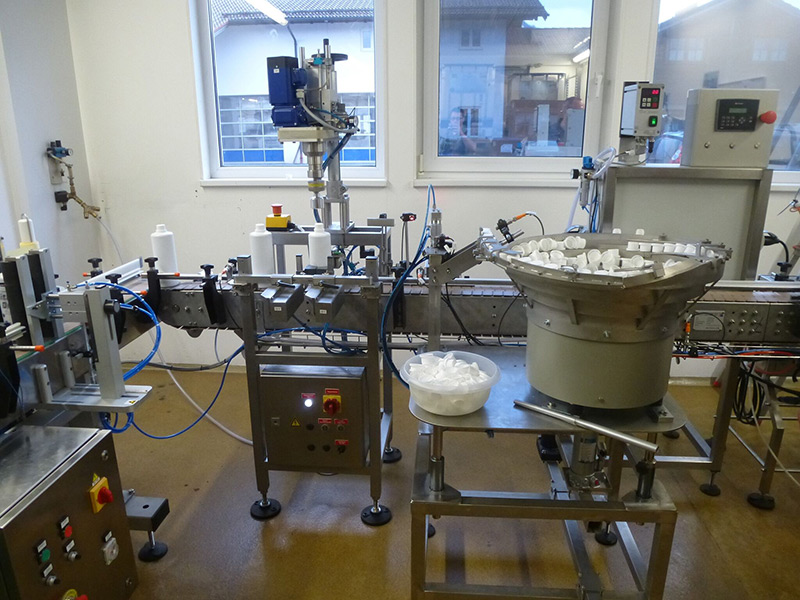

Thanks to the stable base plate and the non-slip feet, our lid sealer is safe and independent. The linear module is the ideal complement to our semi or fully automatic filling line „FILL IN“.
The cover screwdriver works exclusively electrically (24 VDC) and without compressed air!
Easy to adjust:
– the travel path
– the vertical speed
– the vertical contact pressure
– The torque up to which is screwed.
- Stroke: 300 mm
- Holding torque: 198 Ncm
- Voltage: 24 V DC
- Power 100W
The overall structure is extremely compact, easy to service and maintain, easy to clean. The cover chopper / screw capper complies with all relevant requirements and regulations for machines and systems for use in the food processing industry.
Designed for all types of cans / bottles: plastic cans, glass bottles, paper cans Performance: Up to 1,000 products / h.
- 1 x base frame made of stainless steel
- A common extra polished stainless steel control cabinet V2A (EN DIN 1.4301) for mounting control PLC
- Transport chain
- Sensor for product recognition
- Variable adjustable conveying speed
- Station for cover barking / cover screwing
- Adjustment contact pressure / torque adjustment
- Emergency switch
- Protective cover to the operator side as an intervention protection
